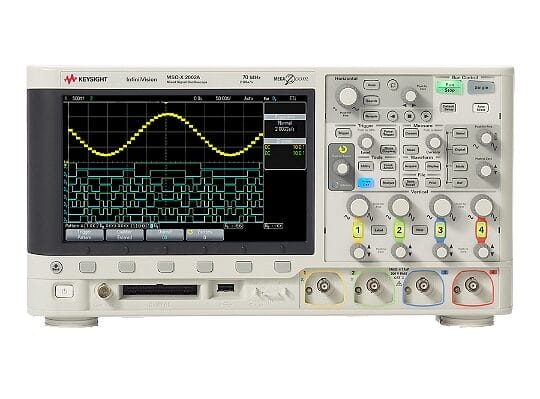

Keysight Msox2002A Oscilloscope (Agilent)
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Engineers and technicians working in a variety of fields, including as electronics, telecommunications, and research and development, can benefit greatly from the extremely effective and adaptable Keysight MSOX2002A Oscilloscope. Its 2+8 channel mixed signal capability enables users to measure and analyze analog and digital signals simultaneously, offering helpful insights into the behavior of intricate circuits. Its outstanding signal quality and accuracy, along with its 70MHz bandwidth, make accurate measurements and analysis possible. The MSOX2002A is a complete tool for diagnosing, debugging, and designing electronic circuits because it also includes sophisticated functions like waveform math, FFT, and serial protocol analysis. It adds value to any lab or workbench thanks to its simple interface, small size, and dependable performance.
Specifications
– Model: MSOX2002A
– Type: Mixed Signal Oscilloscope
– Analog Channels: 2
– Digital Channels: 8
– Bandwidth: 70MHz
– Sample Rate: 1GSa/s
– Memory Depth: 1 Mpts
– Vertical Resolution: 8 bits
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Transition, Setup/Hold, Window, Window Pulse, Nth Edge, Pattern, State, TV, I2C, SPI, RS-232/422/485/UART, CAN, LIN, FlexRay, USB, MIL-STD-1553B, Audio, Power
– Display: 8.5-inch TFT color LCD
– Waveform Capture Rate: >50,000 wfms/s
– Connectivity: USB, LAN, GPIB (optional)
– Supported Protocols: I2C, SPI, RS-232/422/485/UART, CAN, LIN, FlexRay, USB, MIL-STD-1553B, Audio, Power
– Dimensions: 385 mm x 202 mm x 134 mm (W x H x D)
– Weight: 3.6 kg
also known or formerly known as:
- Agilent Technologies MSOX2002A Oscilloscope – Mixed Signal – 2+8ch / 70MHz
