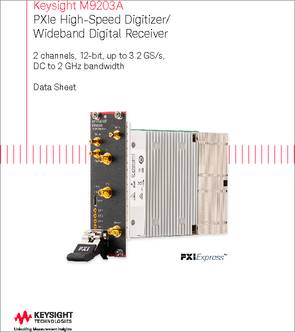

Keysight M9203A High-Speed Digitizer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight M9203A High-Speed Digitizer is an advanced measurement instrument designed for high-speed data acquisition and signal analysis. With a sampling rate of up to 10 GS/s (giga-samples per second) and a bandwidth ranging from DC to 2 GHz, this digitizer is capable of capturing and analyzing high-frequency signals with precision and accuracy. It offers a wide dynamic range and low noise floor, ensuring reliable measurements even in challenging environments. The M9203A is equipped with multiple input channels, allowing for simultaneous acquisition of multiple signals. It also features a flexible triggering system and real-time signal processing capabilities, enabling users to capture and analyze complex waveforms in real-time. With its high performance and versatile features, the Keysight M9203A High-Speed Digitizer is a valuable tool for a wide range of applications, including communications, aerospace, defense, and research.
Specifications
– Sampling rate: Up to 12 GS/s
– Analog bandwidth: Up to 2.5 GHz
– Number of channels: 2
– Resolution: 12 bits
– Input impedance: 50 Ohms
– Input coupling: AC, DC, or GND
– Input voltage range: ±2 V
– Input sensitivity: 0.1 mV/division to 2 V/division
– Trigger type: Edge, pulse width, window, or pattern
– Trigger modes: Normal, auto, and single
– Maximum record length: Up to 32 MSamples
– Maximum real-time streaming rate: Up to 3.2 GB/s
– Data transfer interface: PCIe Gen 3 x8
– Software compatibility: Keysight BenchVue, MATLAB, LabVIEW, etc.
– Operating system compatibility: Windows 7, Windows 10, Linux (Red Hat Enterprise)
– Power requirements: 100-240 VAC, 50/60 Hz
– Dimensions: 19″ width x 3.5″ height x 21″ depth
– Weight: 15.9 lbs (7.2 kg)
