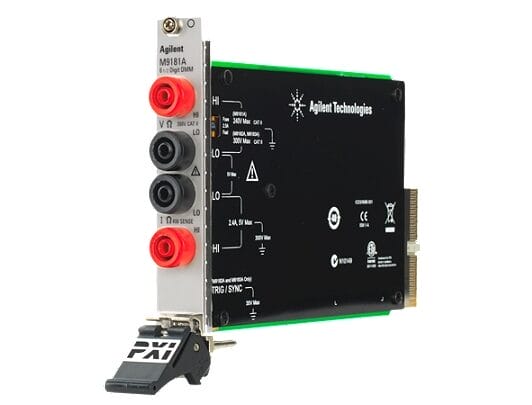

Keysight M9181A Pxi Digital Multimeter
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight M9181A PXI Digital Multimeter is a versatile and high-performance instrument that offers accurate measurement capabilities in a compact and modular form factor. This digital multimeter is designed for use in automated test systems and provides users with the flexibility to customize their test setup according to their specific requirements. With a wide range of measurement functions, including DC voltage, current, resistance, capacitance, and frequency, this instrument is suitable for a variety of applications. Its fast measurement speed and high accuracy make it an ideal choice for demanding test environments. The M9181A also features advanced features such as auto-ranging, 4-wire measurement capability, and isolated channel design to ensure accurate and reliable measurements. Overall, the Keysight M9181A PXI Digital Multimeter is a powerful tool that provides engineers and technicians with the precision and flexibility needed for efficient and reliable testing.
Specifications
– Measurement functions: DC voltage, AC voltage, DC current, AC current, 2-wire resistance, 4-wire resistance, frequency, period, diode test, capacitance
– Measurement range:
– Voltage: ±100 mV to ±300 V
– Current: ±1 μA to ±3 A
– Resistance: 10 Ω to 1 GΩ
– Frequency: 1 Hz to 300 kHz
– Capacitance: 1 nF to 1 μF
– Measurement accuracy:
– Voltage: ±(0.015% of reading + 0.005% of range)
– Current: ±(0.05% of reading + 0.015% of range)
– Resistance: ±(0.05% of reading + 0.015% of range)
– Frequency: ±(0.01% of reading + 0.01% of range)
– Capacitance: ±(0.2% of reading + 0.1% of range)
– Maximum sample rate: 1.8 MSa/s
– Maximum resolution: 6.5 digits
– Input impedance: 10 MΩ
– Trigger input level range: -3 V to +3 V
– Trigger output level range: -3 V to +3 V
– Interface: PXI Express (PXIe)
– Dimensions: 3U PXI module, 219 mm x 40 mm x 257 mm (8.62 in x 1.57 in x 10.12 in)
– Weight: 1.1 kg (2.43 lbs)
