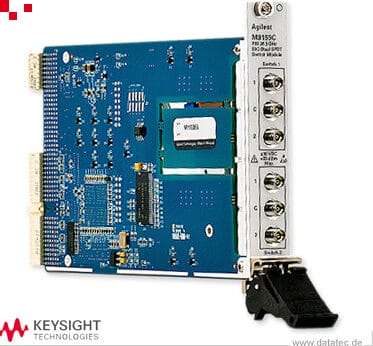

Keysight M9155C Pxi Hybrid Dual Spdt Coaxial Switch
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight M9155C PXI Hybrid Dual SPDT Coaxial Switch is a high-performance device designed for switching RF signals in test and measurement applications. It features two independent Single-Pole Double-Throw (SPDT) switches that can be used simultaneously or individually. The switch operates in a frequency range of DC to 26.5 GHz, making it suitable for a wide range of RF testing needs. With its hybrid design, the M9155C offers excellent performance characteristics such as low insertion loss, high isolation, and high power handling capability. Its compact PXI form factor allows for easy integration into automated test systems, making it an ideal choice for engineers and technicians working in various industries including telecommunications, aerospace, and defense.
Specifications
– Model: Keysight M9155C
– Type: PXI Hybrid Dual SPDT Coaxial Switch
– Frequency Range: DC to 26.5 GHz
– Impedance: 50 ohms
– Insertion Loss:
– 0.05 dB at 1 GHz
– 0.2 dB at 26.5 GHz
– Isolation:
– 90 dB at 1 GHz
– 60 dB at 26.5 GHz
– Switching Speed: 5 ms
– Power Handling:
– 50 W average power
– 300 W peak power
– Connectors: SMA (female)
– Operating Temperature Range: -20°C to +70°C
– Dimensions: 2-slot PXI module
