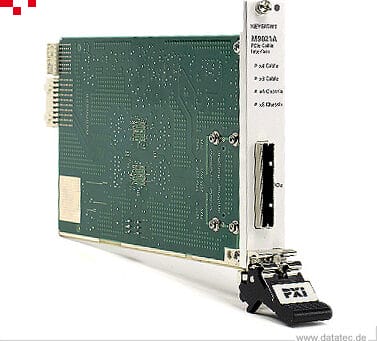

Keysight M9021A Pcie Cable Interface
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight M9021A PCIe Cable Interface is a high-performance solution designed to enable PCIe 3.0 and PCIe 4.0 testing over longer distances using copper cables. This interface offers a reliable and efficient way to connect PCIe devices such as servers, storage systems, and network switches. With its advanced technology, the M9021A allows for error-free transmission of high-speed data, maintaining signal integrity and minimizing latency. It supports various cable lengths, making it suitable for both intra-rack and inter-rack connections. Moreover, the M9021A provides comprehensive testing capabilities, including link training, error injection, and performance analysis, ensuring the highest level of quality and compliance in PCIe systems. Overall, the Keysight M9021A PCIe Cable Interface is a versatile and essential tool for professionals in the field of PCIe testing and validation.
Specifications
– Form factor: Half-length, single-width PCIe card
– Compliance: PCI Express Base Specification Revision 3.0
– Data transfer rate: Up to 8 GT/s (gigatransfers per second)
– Link width: x8 or x4, selectable
– Lane equalization: Adaptive and fixed equalization supported
– Clocking: Spread spectrum clocking supported
– Power consumption: Maximum 17.5W (x8 configuration)
– Supported cable lengths: Up to 7 meters
– Cable type: Shielded twisted pair (STP) or unshielded twisted pair (UTP)
– Connector type: PCIe CEM connector for host connection, PCIe CEM connector for cable connection
– LED indicators: Power, PCIe link status, cable link status
– Software support: Compatible with Keysight PCIe Protocol Test Card Software Suite
– Operating temperature: 0°C to 55°C
– Storage temperature: -40°C to 85°C
– Dimensions: 167.64 mm x 111.15 mm
