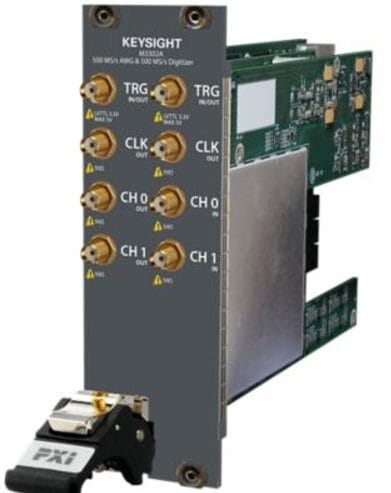

Keysight M3302A Pxie Awg And Digitizer Combination
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight M3302A PXIe AWG and Digitizer Combination is a powerful and versatile instrument designed for advanced signal generation and acquisition. It combines the functionality of an arbitrary waveform generator (AWG) and a digitizer in a single PXI Express (PXIe) module, providing engineers and researchers with a compact and efficient solution for their measurement needs. The AWG section of the module offers up to 2 channels with 16-bit resolution and sampling rates of up to 1.25 GSa/s, allowing for the precise generation of a wide range of waveforms. On the other hand, the digitizer section provides up to 2 channels with 14-bit resolution and sampling rates of up to 1.25 GSa/s, enabling accurate and high-speed signal acquisition. With its flexible synchronization capabilities and advanced software control options, the Keysight M3302A PXIe AWG and Digitizer Combination is an essential tool for applications such as communications, aerospace, defense, and research and development.
Specifications
– Model: Keysight M3302A
– Platform: PXIe (PCIe eXtensions for Instrumentation)
– Combination of Arbitrary Waveform Generator (AWG) and Digitizer
– AWG Specifications:
– Sample Rate: up to 1.25 GSa/s
– Number of Channels: 2
– Vertical Resolution: 14 bits
– Output Voltage Range: ±2 V
– Signal Bandwidth: up to 500 MHz
– Memory Depth: up to 2 GSamples per channel
– Digitizer Specifications:
– Sample Rate: up to 1.25 GSa/s
– Number of Channels: 2
– Vertical Resolution: 14 bits
– Input Voltage Range: ±2 V
– Signal Bandwidth: up to 500 MHz
– Memory Depth: up to 2 GSamples per channel
– PXIe Interface:
– PXIe Gen 2 x8
– Compatibility with PXIe chassis and controllers
– Software Support:
– Compatible with Keysight’s Signal Studio software
– Programming interfaces include IVI-COM, IVI-C, MATLAB, LabVIEW, etc.
– Additional Features:
– Built-in waveform sequencer for complex signal generation
– Advanced triggering capabilities
– Real-time waveform streaming and analysis
