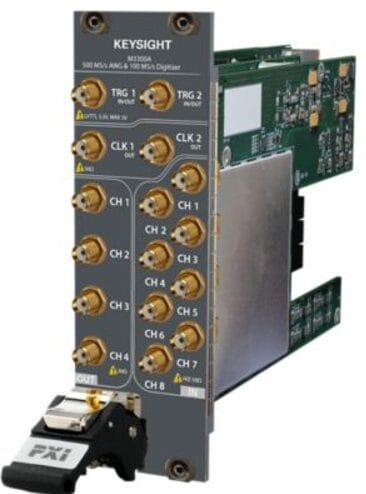

Keysight M3300A Pxie Awg And Digitizer Combination
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight M3300A PXIe AWG and Digitizer Combination is a powerful and versatile instrument that combines the functions of an arbitrary waveform generator (AWG) and a digitizer in a single module. With its high-speed data acquisition capability and flexible waveform generation, this instrument offers engineers and researchers a wide range of possibilities for signal generation, analysis, and testing. The AWG feature allows users to generate complex waveforms with precise control over frequency, amplitude, and timing parameters, making it ideal for applications such as stimulus generation and signal simulation. On the other hand, the digitizer function enables high-speed data acquisition with excellent signal fidelity, making it suitable for applications such as signal analysis, characterization, and measurements. The combination of these two functionalities in one module provides a compact and cost-effective solution for various test and measurement needs.
Specifications
– Model: Keysight M3300A
– Combination of AWG (Arbitrary Waveform Generator) and Digitizer
– PXIe (PCIe eXtensions for Instrumentation) platform
– AWG Specifications:
– Channels: 2
– Sample Rate: up to 1.25 GSa/s
– Memory Depth: up to 4 GSa
– Resolution: 12 bit
– Output Voltage Range: ±1 V peak
– Frequency Range: DC to 400 MHz
– Digitizer Specifications:
– Channels: 2
– Sample Rate: up to 1.25 GSa/s
– Memory Depth: up to 4 GSa
– Resolution: 12 bit
– Input Voltage Range: ±1 V peak
– Bandwidth: DC to 400 MHz
– Combination Features:
– Seamless synchronization between AWG and Digitizer
– Simultaneous generation and acquisition of signals
– Arbitrary waveform generation and digitization capabilities in a single module
– Flexible triggering and synchronization options
– Advanced signal processing capabilities
– Compatible with Keysight’s PXIe chassis and software platforms
