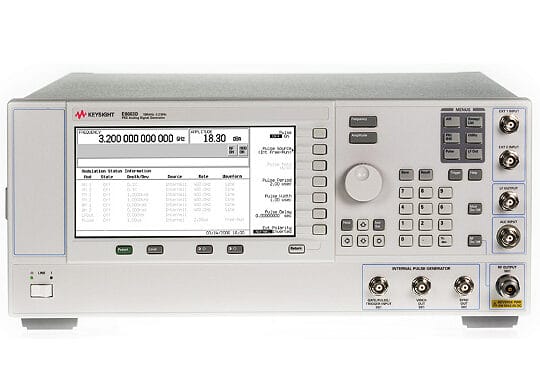

Keysight E8663D Psg Rf Analog Signal Generator, Up To 9 Ghz
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
In the area of RF (Radio Frequency) technology, a high-performance instrument called the Keysight E8663D Signal Generator – PSG – RF – Analog is frequently utilized. It is made with excellent accuracy and stability to create and modulate analog signals. The generator is useful for a range of applications in research, development, and production since it has a broad frequency range and can create signals up to 44 GHz. The E8663D Signal Generator offers precise control over modulation, frequency, amplitude, and phase thanks to its advanced features and user-friendly interface, making it simple for users to modify and optimize their signals. For engineers and technicians working in the RF sector, it is an essential tool because to its dependable performance and durable design.
Specifications
– Frequency range: 100 kHz to 44 GHz
– Output power: -20 dBm to +20 dBm
– Frequency resolution: 0.01 Hz
– Frequency switching speed: < 9 ms
– Amplitude accuracy: ±0.5 dB
– Amplitude flatness: ±0.25 dB
– Phase noise: -117 dBc/Hz at 10 kHz offset at 1 GHz carrier frequency
– Harmonics: <-50 dBc
– Spurious signals: <-60 dBc
– Non-harmonic spurious signals: <-70 dBc
– Amplitude modulation (AM): 0% to 100% with 1% resolution
– Frequency modulation (FM): 0 Hz to 20 MHz with 1 Hz resolution
– Pulse modulation (PM): 1 Hz to 20 MHz with 1 Hz resolution
– Pulse width modulation (PWM): 1 Hz to 20 MHz with 1 Hz resolution
– Sweep modes: List, Step, or Ramp
– External modulation input: 10 MHz to 20 MHz, 1 Vpp to 3 Vpp
– Dimensions: 426 mm x 132 mm x 413 mm
– Weight: 13.2 kg
also known or formerly known as:
- Agilent Technologies E8663D Signal Generator – PSG – RF – Analog
