Keysight E1466A 4 X 64 Relay Matrix Switch
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description

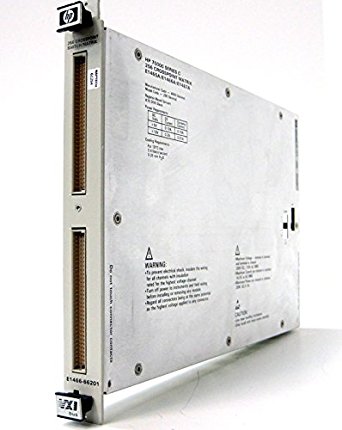

The Keysight E1466A 4 x 64 Relay Matrix Switch is a highly flexible and efficient switching solution designed for automated test equipment (ATE) environments where multiple signal routing paths are required. This matrix switch offers 4 rows by 64 columns, providing a total of 256 crosspoints that can be used to connect any input to any output. The relay matrix is well-suited for complex signal routing in applications such as semiconductor testing, telecommunications, and electronic device manufacturing. Each relay is designed for high reliability, ensuring long operational life even under frequent switching conditions. The E1466A is part of the Keysight VXI series, offering seamless integration with other modules for scalable and customizable test setups. The module’s design supports easy configuration and control through various software interfaces, making it a versatile choice for engineers who need precise and reliable signal routing capabilities.
Specifications
- Configuration: 4 rows x 64 columns matrix switch
- Number of Crosspoints: 256 crosspoints
- Relay Type: Electromechanical relays
- Relay Contact Rating:
- Maximum voltage: 200 V
- Maximum current: 1 A (switching), 2 A (carry)
- Maximum power: 30 W (per channel)
- Switching Speed: <10 ms per relay operation
- Channel Isolation: >50 dB at 10 MHz
- Bandwidth: DC to 30 MHz
- Connector Type: 96-pin DIN connector for easy integration
- Relay Life: >1 million operations per relay
- Power Consumption: <10 W typical
- Operating Temperature: 0°C to 55°C
- Form Factor: VXI plug-in module
- Software Compatibility: Compatible with Keysight VEE, LabVIEW, and other industry-standard software platforms
