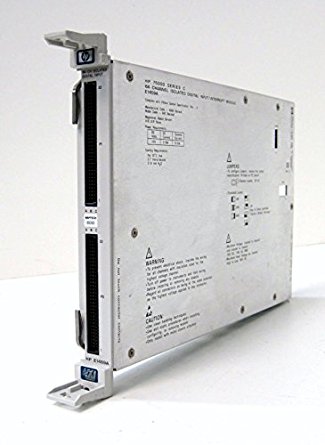

Keysight E1459A 64-Channel Isolated Digital Input/Interrupt
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight E1459A 64-Channel Isolated Digital Input/Interrupt is a versatile and robust module designed for data acquisition systems that require reliable digital input handling and interrupt generation. This module is particularly suited for applications where isolation between channels is critical, such as in industrial automation, process control, and high-voltage environments. Each of the 64 channels can be independently configured to monitor digital signals, with the added capability of generating interrupts based on user-defined conditions. The isolated design ensures that each channel is protected from potential interference, providing accurate and stable signal measurements. The E1459A integrates easily with other modules in the Keysight VXI system, offering seamless scalability and flexibility for complex test setups. Its efficient design and comprehensive feature set make it an essential component in systems that demand high reliability and precision in digital signal monitoring.
Specifications
- Number of Channels: 64 isolated digital input channels
- Input Voltage Range: ±48 V DC maximum
- Input Threshold:
- Low: <1.2 V
- High: >2.0 V
- Channel Isolation: 500 V channel-to-channel and channel-to-ground isolation
- Interrupt Capability: Programmable interrupts on any input channel
- Input Impedance: High impedance for minimal signal loading
- Input Frequency: Up to 1 kHz per channel
- Response Time: 1 ms typical for state changes
- Power Consumption: <15 W typical
- Connector Type: 96-pin DIN connector for easy integration
- Operating Temperature: 0°C to 55°C
- Form Factor: VXI plug-in module
- Software Compatibility: Supported by Keysight’s VEE, LabVIEW, and other industry-standard software platforms
