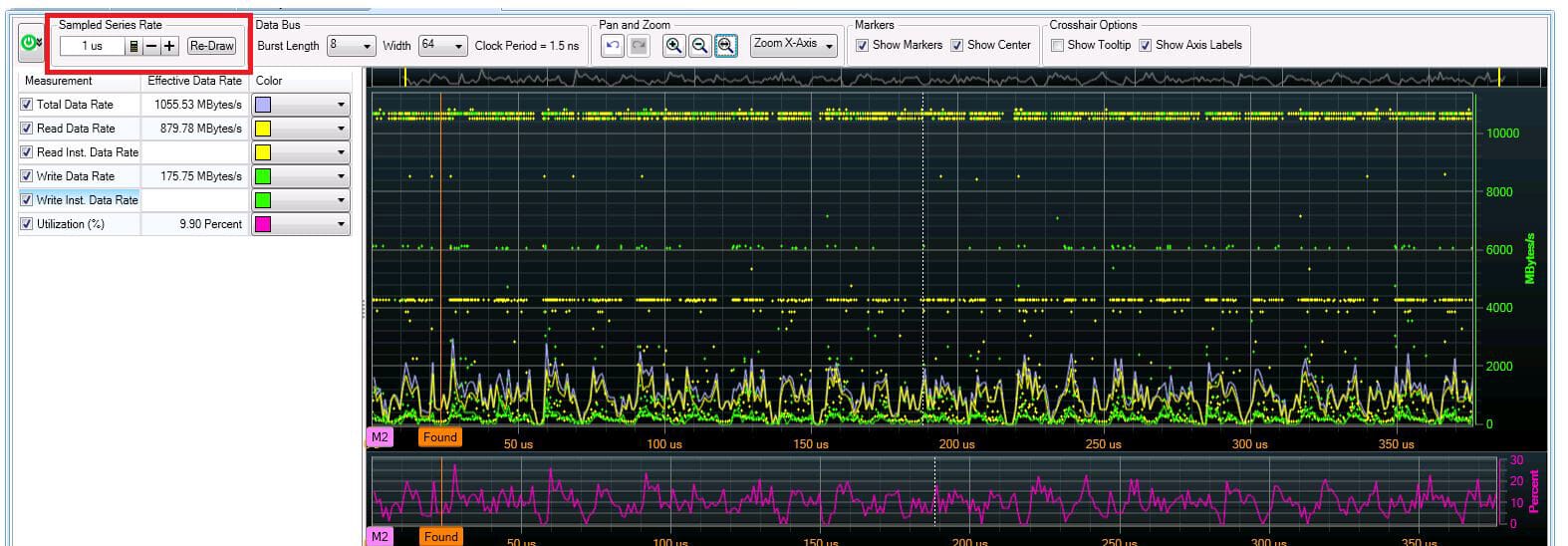

Keysight B4661A Logic Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight B4661A Logic Analyzer is a powerful and versatile tool used for capturing, analyzing, and debugging digital signals in electronic systems. With its high-performance capabilities, it is designed to meet the needs of engineers working on complex digital designs. The Logic Analyzer offers deep memory depth, allowing for long capture times and the ability to analyze multiple channels simultaneously. It also provides advanced triggering capabilities, enabling users to capture specific events or patterns of interest. The intuitive user interface and flexible software options make it easy to navigate and analyze captured data efficiently. The Keysight B4661A Logic Analyzer is an essential tool for any engineer working on digital systems, ensuring accurate and reliable signal analysis for efficient debugging and design optimization.
Specifications
– Bandwidth: 2.5 GHz
– Channels: 68 digital channels
– Sample rate: up to 4 Gsa/s
– Memory depth: up to 4 Mpts per channel
– Timing resolution: 80 ps
– Input voltage range: -2V to +7V
– Input impedance: 100 kΩ || 1 pF
– Trigger types: edge, pattern, state
– Trigger positions: pre, mid, post
– Protocol support: I2C, SPI, UART, RS232, CAN, LIN, FlexRay, USB, Ethernet, HDMI, MIPI D-PHY, PCIe
– Data export formats: CSV, VCD, TXT, MATLAB, Waveform Viewer
– Compatibility: Keysight Infiniium and InfiniiVision oscilloscopes
