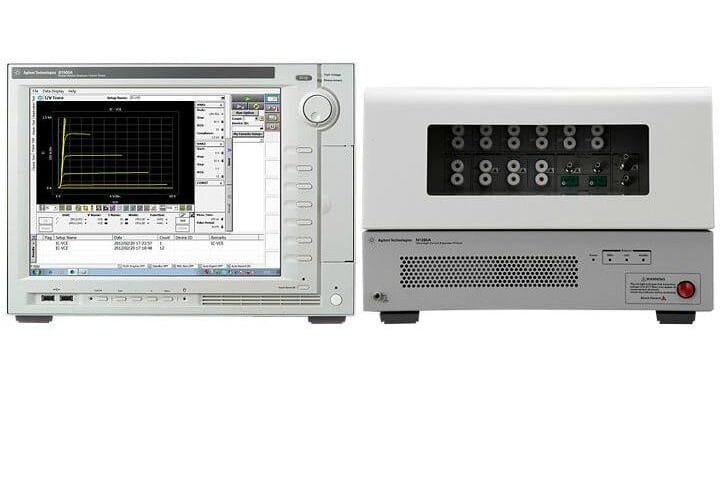

Keysight B1505Ap Pre-Configured Power Device Analyzer / Curve Tracer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight B1505Ap Pre-Configured Power Device Analyzer / Curve Tracer is an advanced and highly efficient instrument designed for analyzing and testing power devices. With its pre-configured setup, it provides users with a simplified and user-friendly experience. The analyzer incorporates a curve tracer feature, allowing for accurate characterization and evaluation of power devices by plotting various electrical characteristics. Its comprehensive measurement capabilities include high-voltage breakdown, capacitance, on-resistance, leakage current, and many others. The B1505Ap is an essential tool for power device manufacturers and researchers, enabling them to optimize their designs, ensure quality control, and improve overall device performance.
Specifications
– Measurement capability: 2- and 4-quadrant measurement, pulse measurement, high-resolution measurement
– Voltage measurement range: 1 µV to 10 kV
– Current measurement range: 100 fA to 150 A
– Voltage resolution: 10 µV
– Current resolution: 100 fA
– Maximum pulse voltage: 10 kV
– Maximum pulse current: 150 A
– Sampling rate: 10 Msamples/s
– Maximum number of measurement points: 10,000 points
– Measurement time: <10 ms per data point
– Number of SMUs: 4
– Maximum channel density: 48 SMU channels
– Maximum power capacity: 100 W per SMU channel
– Minimum pulse width: 1 µs
– Maximum pulse width: 100 ms
– Compliance voltage: 10 kV
– Compliance current: 150 A
– Built-in measurement functions: IV, CV, pulsed IV, pulsed CV, Qg, Rds(on), etc.
– Measurement software: EasyEXPERT group+ software
– Operating system compatibility: Windows 7, Windows 10
– Dimensions: 426 mm x 177 mm x 500 mm
– Weight: 28 kg
