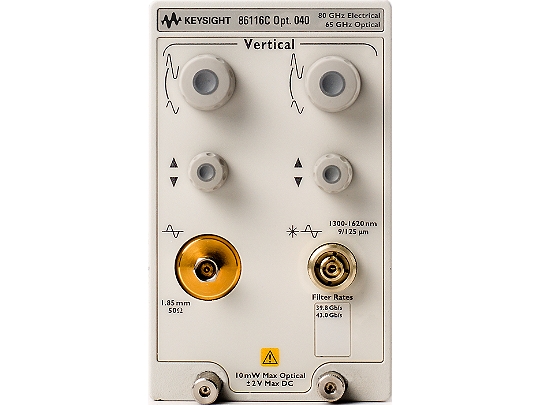

Keysight 86116C Dca Oscilloscope (Agilent)
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
For the analysis of high-speed optical and electrical data, Keysight has created the 86116C Module, an advanced testing tool. With a broad frequency range of 40-65GHz for optical sampling and 80GHz for electrical sampling, it is appropriate for a variety of applications that call for exact measurements. With this module, optical signals in the telecommunications sector may be accurately characterized across the wavelength range of 1300–1620 nm. Engineers and researchers who want thorough testing capabilities for their high-frequency optical and electrical signals may rely on the Keysight 86116C Module because of its more effective sampling rate and signal quality.
Specifications:
– Frequency range: 40-65 GHz for optical sampling, 80 GHz for electrical sampling
– Wavelength range: 1300-1620 nm
– Optical input power: -12 to +3 dBm
– Optical sensitivity: -10 dBm
– Optical bandwidth: 50 GHz
– Electrical bandwidth: 80 GHz
– Rise time: < 4.4 ps
– Sampling rate: up to 80 GS/s
– Vertical resolution: 8 bits
– Input impedance: 50 ohms
– Input connector type: 1.85 mm (f)
– Output connector type: 2.4 mm (f)
– Instrument control interface: USB, GPIB
Keysight 86116C is also known or formerly known as:
- Agilent Technologies 86116C Module – 40-65GHz Optical / 80GHz Electrical Sampling – 1300-1620nm
