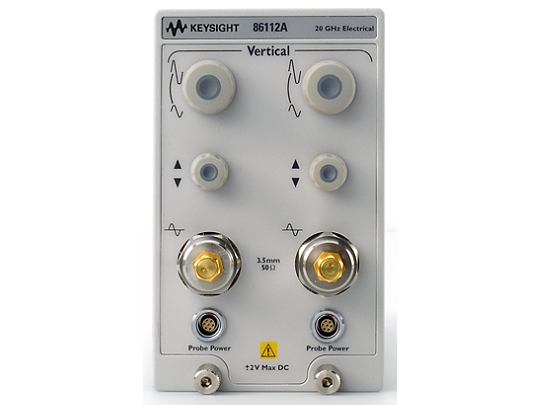

Keysight 86112A Dual Channel Electrical Module
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight 86112A Dual Channel Electrical Module is a versatile and high-performance tool designed for accurate electrical signal characterization in high-speed digital applications. It is compatible with the Keysight 86100C/D Infiniium DCA-J mainframes, providing engineers with the capability to perform precise time-domain and frequency-domain analysis. The dual-channel configuration allows for simultaneous analysis of two signals, which is essential for differential signal testing and other complex measurements. With wide bandwidth and low noise, the 86112A is well-suited for applications such as jitter analysis, eye diagram measurements, and signal integrity assessments in high-speed digital communication systems. This module is ideal for engineers who need reliable and accurate measurement tools for developing and testing cutting-edge technologies.
Specifications
- Bandwidth: DC to 20 GHz
- Number of Channels: Dual-channel configuration
- Data Rates Supported: Up to 12.5 Gb/s
- Input Sensitivity: 25 mV to 2 V (differential)
- Input Impedance: 50 ohms
- Channel Isolation: > 50 dB at 10 GHz
- Time Resolution: High time resolution with sub-picosecond accuracy
- Noise Floor: Low noise floor for precise measurements
- Jitter Measurement: Supports advanced jitter analysis
- Trigger Bandwidth: DC to 20 GHz
- Rise Time: <17.5 picoseconds (10-90%)
- Signal Integrity: Ensures minimal signal distortion for accurate readings
- Compatibility: Designed for use with Keysight 86100C/D Infiniium DCA-J mainframes
- Control Interfaces: GPIB, LAN, and USB for remote operation
- Form Factor: Modular plug-in design for easy integration with existing systems
