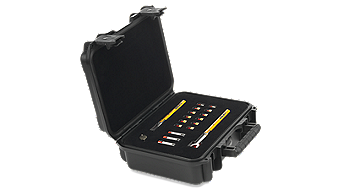

Keysight 85059B Dc TO 120 GHz Calibration Kit
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight 85059B DC to 120 GHz Calibration Kit is a high-quality and reliable tool used for accurate calibration of microwave instruments and systems. It is designed to provide precise measurements in a wide frequency range, from DC up to 120 GHz. This calibration kit includes a variety of standards and components such as precision adapters, shorts, opens, and loads, which are essential for calibrating and verifying the performance of vector network analyzers and other microwave instruments. The Keysight 85059B Calibration Kit ensures that measurements are traceable to international standards, guaranteeing the accuracy and reliability of test results. With its comprehensive range and excellent performance, this calibration kit is an essential tool for professionals working in the field of microwave engineering and testing.
Specifications
– Frequency range: DC to 120 GHz
– Impedance: 50 ohms
– Connector type: Precision 2.4 mm male
– Calibration standards included: Open, short, load, and thru
– Return loss: Greater than 36 dB from DC to 65 GHz, greater than 26 dB from 65 GHz to 120 GHz
– Insertion loss: Less than 0.7 dB from DC to 50 GHz, less than 1.2 dB from 50 GHz to 110 GHz, less than 1.5 dB from 110 GHz to 120 GHz
– Phase match: Less than 4 degrees from DC to 50 GHz, less than 6 degrees from 50 GHz to 110 GHz, less than 8 degrees from 110 GHz to 120 GHz
– Temperature range: -55°C to +85°C
– VSWR: Less than 1.2 from DC to 50 GHz, less than 1.3 from 50 GHz to 110 GHz, less than 1.4 from 110 GHz to 120 GHz
– Dimensions: 4.5 cm x 4.5 cm x 2.5 cm
– Weight: 80 grams
