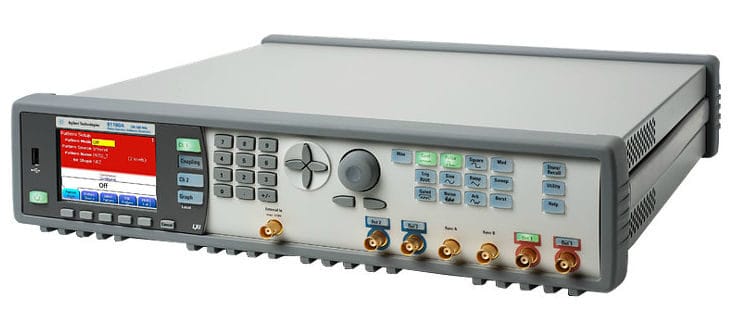

Keysight 81160A Pulse Function Arbitrary Noise Generator (Agilent)
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight 81160A Pulse/Function/Arbitrary Generator is a versatile device that combines pulse and function generation capabilities. It can be customized by users based on their specific testing requirements, offering one or two channels. This generator ensures precise and reliable waveform generation through features like high signal quality, fast rise and fall times, and minimal jitter. It also has a large memory capacity and multiple modulation capabilities, allowing it to create complex waveforms. With its wide range of applications in various industries such as telecommunications, aerospace, and electronics, the Keysight 81160A Pulse/Function/Arbitrary Generator is a valuable tool for research, development, and testing purposes.
Specifications:
– Model: 81160A
– Type: Pulse/Function/Arbitrary Generator
– Number of Channels: 1 or 2
– Frequency Range: up to 330 MHz
– Output Voltage Range: 3 mVpp to 10 Vpp (into 50 Ω load)
– Maximum Output Current: 10 mA
– Resolution: 14 bits
– Waveform Types: Pulse, Square, Ramp, Triangle, Sine, Noise, Arbitrary
– Waveform Length: Up to 16 Mpts (32 Mpts optional)
– Sample Rate: 2.4 GSa/s
– Modulation: AM, FM, PM, FSK, PWM
– External Trigger Input: TTL level
– Interface: USB, GPIB, LAN (Ethernet)
Dimensions:
– 210 mm x 88 mm x 370 mm (W x H x D)
– Weight: 3.4 kg
also known or formerly known as:
- Agilent Technologies 81160A Pulse/Function/Arbitrary Generator – 1 or 2ch
