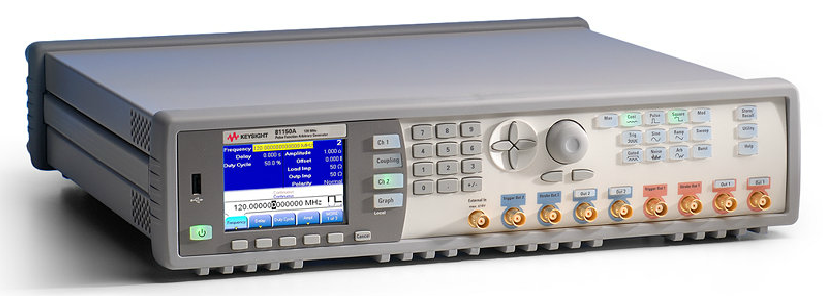

Keysight 81150A Pulse Pattern Generator (Agilent)
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight 81150A Pulse/Function/Arbitrary Generator is a versatile and high-performance tool specifically designed to generate accurate and precise waveforms. It offers flexibility by operating in either one or two channels, allowing for waveform generation in various applications. With a frequency range of up to 120MHz, it can create complex and detailed waveforms. This generator can generate different types of signals, including pulses and arbitrary waveforms, making it suitable for research and development, manufacturing, and testing purposes. The Keysight 81150A Pulse/Function/Arbitrary Generator is a reliable and powerful instrument that empowers users to generate high-quality waveforms tailored to their specific needs.
Specifications:
– Number of channels: 1 or 2
– Maximum frequency: 120MHz
– Waveform types: Pulse, square, ramp, triangle, noise, sinewave, arbitrary
– Output amplitude range: 10mVpp to 10Vpp
– Output impedance: 50 ohms
– Pulse width range: 10ns to 1000s
– Rise/fall time: <4.5ns
– Minimum pulse width: 20ns
– Arbitrary waveform memory: 64M samples per channel
– Modulation capabilities: AM, FM, PM, FSK, PWM
– Triggering options: Internal, external, manual, bus
– Connectivity: GPIB, LAN, USB
– Power supply: 100-240V AC, 50/60Hz
Dimensions:
– 440mm x 177mm x 415mm
– Weight: 8.5kg
also available with the following specs and models:
- 002 2 Output Channels for 81150A Pulse/Function/Arbitrary Generator
- PULSE FUNCTION ARBITRARY GENERATOR 001
also known or formerly known as:
- Agilent Technologies 81150A Pulse/Function/Arbitrary Generator – 1 or 2ch / 120MHz
