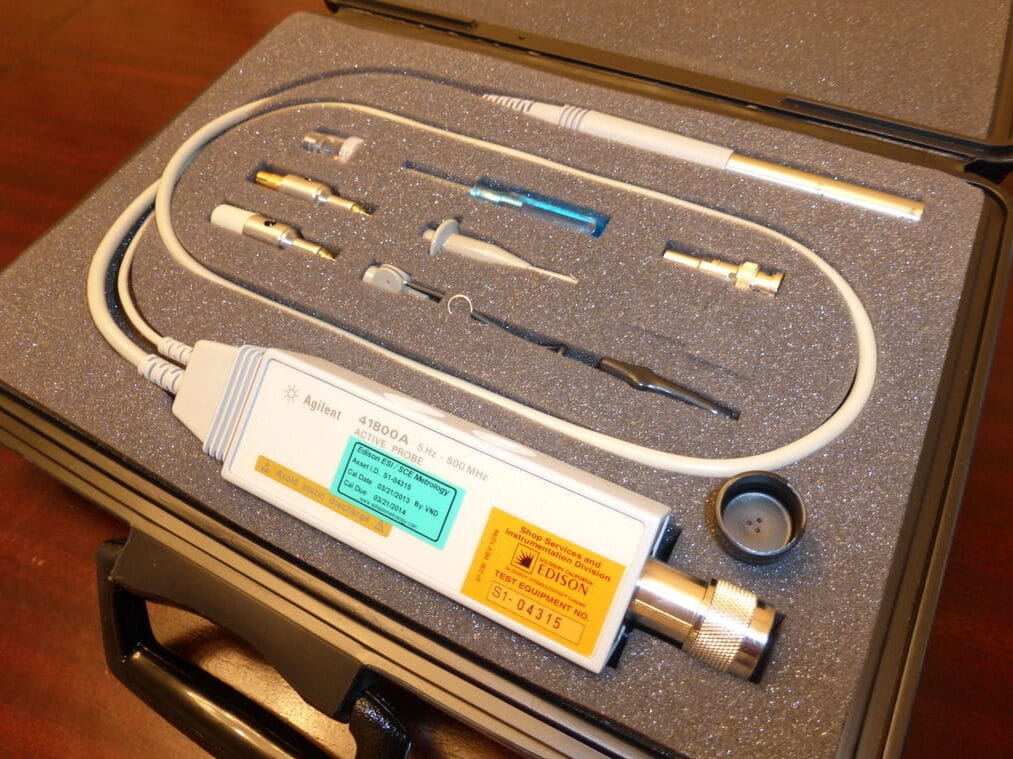

Keysight 41800A Active Probe, 5 Hz To 500 Mhz (Agilent)
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight 41800A Active Probe is a device built to deliver precise and dependable measurements across a broad frequency range of 5Hz to 500MHz. Its advanced capabilities empower users to accurately capture and analyze signals with exceptional speed and precision. By offering low noise and high input impedance, this active probe ensures excellent signal fidelity and minimizes any disturbance on the circuit being tested. Engineers and technicians in diverse fields like electronics, telecommunications, and research rely on the 41800A as an indispensable tool for efficient and detailed measurements as well as troubleshooting tasks.
Specifications
– Frequency range: 5Hz-500MHz
– Attenuation range: 10:1
– Input impedance: 10 Megaohms
– Input capacitance: 14pF
– Maximum input voltage: ± 400VDC + peak AC
– Dynamic range: ± 8V (peak AC + DC)
– DC offset range: ± 10V
– Common mode rejection ratio: > 60dB at 60Hz
– Rise time: < 1.1ns
– Bandwidth limit: 500MHz
– Probe tip length: 2.44mm (0.096 inches)
– Probe tip diameter: 0.39mm (0.015 inches)
– Probe tip material: Tungsten
– Cable length: 1.2m (4 feet)
– Power requirement: 4 AA batteries or optional AC adapter
Dimensions:
– 245mm x 50mm x 40mm (9.6 inches x 2 inches x 1.6 inches)
– Weight: 0.29kg (0.64lb)
also known or formerly known as:
- Agilent Technologies 41800A Active Probe – 5Hz-500MHz
