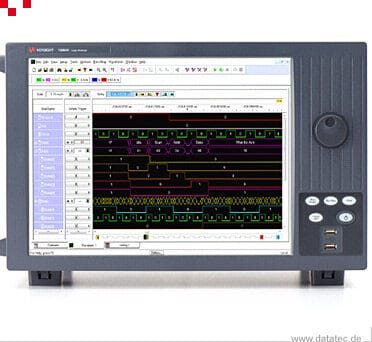

Keysight 16864A Logic Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight 16864A Logic Analyzer is a powerful tool specifically designed for engineers and technicians who work on digital systems. This logic analyzer has 64 logic channels and can reach a maximum state speed of 4 Gb/s, allowing users to accurately capture and analyze complex digital signals. It comes with a large color display that shows clear and detailed waveforms, making it easy to identify and solve problems. Additionally, the Keysight 16864A offers advanced triggering capabilities, such as pattern, state, and edge triggers, which enable precise measurement and analysis of digital signals. With its user-friendly interface and impressive features, the Keysight 16864A Logic Analyzer is an essential tool for debugging and validating digital systems.
Specifications
– Model: Keysight 16864A
– Type: Logic Analyzer
– Number of Channels: 34
– Maximum Channel Speed: 2.5 Gb/s
– Maximum Timing Zoom: 64 Ksamples
– Maximum State Analysis: 256 Mb
– Memory Depth: 4 MB
– Sampling Rate: 4 GHz
– Maximum Input Voltage: ±40 V
– Input Impedance: 100 kΩ || 3 pF
– Trigger Types: Edge, Pattern, State, Sequence, Duration, Setup/Hold, Parallel
– Trigger Sequences: Up to 2048 bits
– Supported Protocols: USB 2.0, I2C, SPI, RS-232, CAN, FlexRay, Ethernet, PCIe, DDR, MIPI, HDMI
– Operating Temperature Range: 0°C to 55°C
– Dimensions: 439 mm × 340 mm × 192 mm
– Weight: 8.7 kg
