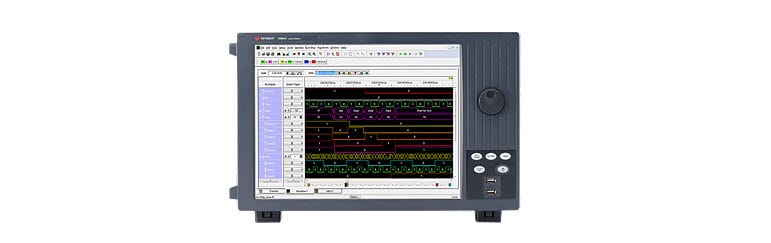

Keysight 16860A Logic Analyzers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Keysight 16860A Logic Analyzer, developed by Keysight Technologies, is a versatile and powerful tool used in the fields of digital electronics and computer engineering. It offers a comprehensive range of features and capabilities. This logic analyzer is designed with advanced triggering and display options, allowing engineers to easily capture and analyze complex digital signals. It has a high-speed data acquisition rate and a deep memory capacity, making it suitable for a wide range of applications such as debugging, troubleshooting, performance analysis, and protocol compliance testing. With its user-friendly interface and flexible connectivity options, it is a reliable and efficient tool for both hardware and software engineers. In summary, the Keysight 16860A Logic Analyzer is a trusted solution for digital signal analysis, assisting engineers in the efficient design, validation, and debugging of complex digital systems.
Specifications
– 34 channels
– Maximum input rate: 4 Gb/s
– Maximum memory depth: 400 Mb
– Timing resolution: 20 ps
– Sample rate: 16 Gs/s
– State analysis: up to 2.5 GHz
– Pattern analysis: up to 3.125 Gb/s
– Protocol analysis: SPI, I2C, UART, CAN, LIN, FlexRay, Ethernet, USB, PCIe, SAS, SATA, HDMI, MIPI, DDR, and more
– Trigger modes: edge, pattern, state, window, setup and hold, glitch, runt, timeout, and more
– Protocol-level triggering and analysis
– Support for user-defined protocols
– Integrated digital voltmeter (DVM) with 8-bit resolution
– Flexible probe configurations including flying leads, mid-bus probes, and socketed probes
– Advanced measurement capabilities such as eye diagrams, jitter analysis, and noise analysis
– Powerful software for data analysis and visualization
– Compatibility with Keysight’s InfiniiVision oscilloscopes for mixed-signal analysis
