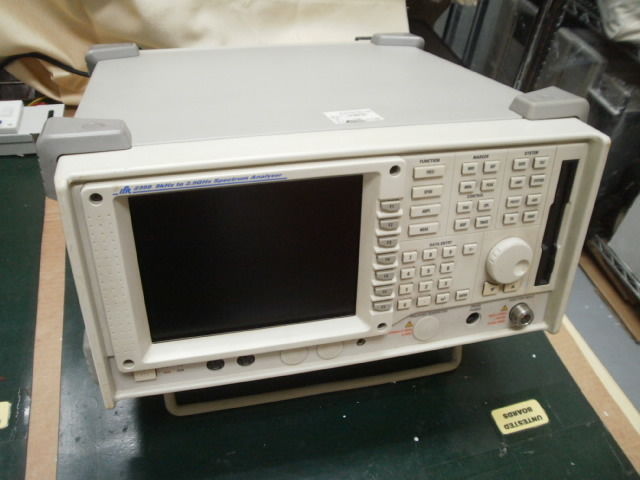

IFR Systems 9 Khz-2.9 Ghz Spectrum Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The IFR Systems 9 kHz-2.9 GHz Spectrum Analyzer is a versatile and robust tool designed for RF signal analysis across a wide frequency range. With a frequency span from 9 kHz to 2.9 GHz, this spectrum analyzer is ideal for applications in telecommunications, broadcasting, and electronic warfare. It features high-resolution measurement capabilities with excellent sensitivity, enabling the detection and analysis of even low-level signals. The analyzer includes a large, easy-to-navigate display, offering clear visualization of spectral data, and supports various analysis functions such as signal strength measurement, bandwidth analysis, and noise figure determination. Its compact design and intuitive interface make it suitable for both laboratory and field use, providing reliable performance in a wide range of RF testing scenarios.
Specifications
- Frequency Range: 9 kHz to 2.9 GHz
- Frequency Resolution: 1 Hz
- Frequency Accuracy: ±1 ppm
- Amplitude Range: -130 dBm to +30 dBm
- Amplitude Accuracy: ±0.5 dB
- Resolution Bandwidth (RBW): 1 Hz to 3 MHz, adjustable
- Video Bandwidth (VBW): 1 Hz to 3 MHz, adjustable
- Phase Noise: -100 dBc/Hz at 10 kHz offset
- Dynamic Range: 80 dB
- Display: 6.4-inch TFT color LCD
- Input Impedance: 50 ohms
- Third Order Intercept (TOI): +10 dBm typical
- Sweep Time: 10 ms to 1000 s
- Data Storage: Internal memory and external USB support
- Interfaces: USB, GPIB, LAN
- Power Supply: 100-240 VAC, 50/60 Hz
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Dimensions: 320 x 180 x 400 mm (12.6 x 7.1 x 15.7 inches)
- Weight: Approximately 10 kg (22 lbs)
