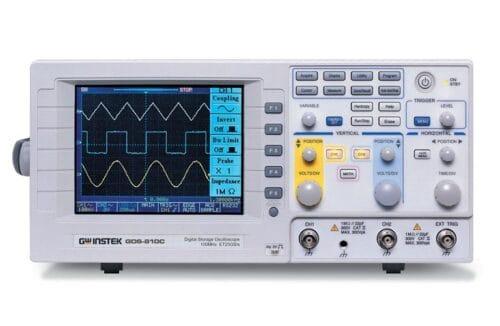

GW Instek GDS-810C 100Mhz Digital Storage Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The GW Instek GDS-810C 100Mhz Digital Storage Oscilloscope is a reliable and versatile device used for measuring and analyzing electrical signals. It has a 100Mhz bandwidth, allowing it to accurately capture high-frequency waveforms. The digital storage capability enables users to store and review waveforms, simplifying the analysis of complex signals. The GDS-810C offers advanced features such as automatic measurements, waveform math functions, and multiple triggering options. Its user-friendly interface and intuitive controls make it suitable for both professionals and beginners. In summary, the GW Instek GDS-810C 100Mhz Digital Storage Oscilloscope is a powerful tool that provides precise and detailed measurements for a variety of electronic applications.
Specifications
– Bandwidth: 100 MHz
– Channels: 2
– Sample Rate: 1 GSa/s
– Memory Depth: 2 Mpts
– Vertical Sensitivity: 2 mV/div – 5 V/div
– Vertical Resolution: 8 bits
– Rise Time: ≤ 3.5 ns
– Input Impedance: 1 MΩ ± 2% in parallel with 15 pF ± 3 pF
– Input Coupling: DC, AC, GND
– Time Base Range: 2 ns/div – 50 s/div
– Trigger Types: Edge, Pulse, Video, Slope, Alternative
– Trigger Modes: Auto, Normal, Single
– Display: 5.7 inch TFT color LCD, 320×240 pixels resolution
– Interface: USB, RS-232, P/F Out, Ext Trig In
– Power Supply: 100-240 VAC, 50/60 Hz
– Dimensions: 303 mm x 152 mm x 133 mm
– Weight: 2.5 kg
