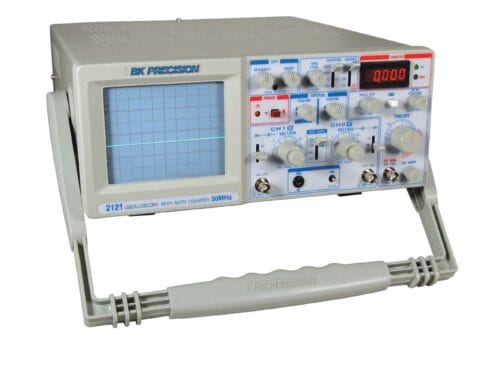

Bk Precision 2121 30Mhz Analog Oscilloscope With Frequency Counter
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Bk Precision 2121 30MHz Analog Oscilloscope with Frequency Counter is a versatile and reliable instrument for electronic testing and analysis. With a frequency range of up to 30MHz, it allows for accurate waveform visualization and measurement. The built-in frequency counter feature enhances its functionality, enabling users to measure the frequency of signals with ease. The analog display provides a clear and intuitive representation of waveforms, making it suitable for both beginners and experienced professionals. Additionally, the Bk Precision 2121 is designed with durability in mind, ensuring long-term usage and accuracy. Whether it’s for educational purposes, research, or troubleshooting, this oscilloscope is a valuable tool for any electronics enthusiast.
Specifications
– Frequency range: 0.3Hz to 30MHz
– Bandwidth: 30MHz
– Channels: Dual trace
– Sensitivity: 5mV/div to 5V/div
– Input impedance: 1MΩ ± 2%
– Maximum input voltage: 400V (DC + AC peak)
– Vertical resolution: 8-bit
– Horizontal sweep range: 10ns/div to 0.5s/div
– Sweep modes: Auto, Normal, Single
– Trigger types: Auto, Normal, Single
– Trigger source: CH1, CH2, Line
– Trigger level: Adjustable
– Delayed sweep: Yes
– Display type: Cathode-ray tube (CRT)
– Display size: 6-inch
– Cursor measurement: Voltage, frequency, time
– Frequency counter range: 0.1Hz to 30MHz
– Input coupling: AC, DC, GND
– Input signal: Single-ended
– Power supply: 100-240V AC, 50/60Hz
– Dimensions: 320mm x 150mm x 455mm
– Weight: 10.8 kg (23.8 lbs)
