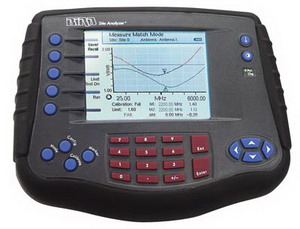

Bird Electronic 25Mhz -6000 Mhz Site Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Bird Electronic 25 MHz – 6000 MHz Site Analyzer is a sophisticated and highly capable tool designed for comprehensive analysis of RF sites and systems across a wide frequency range. This versatile analyzer provides detailed measurements and diagnostics for RF signals from 25 MHz up to 6 GHz, making it ideal for a variety of applications including telecommunications, broadcasting, and electronic testing. With its advanced measurement capabilities, the 25 MHz – 6000 MHz Site Analyzer delivers precise insights into signal strength, frequency response, and other critical parameters necessary for optimizing and troubleshooting RF systems. It features a high-resolution display that provides clear and detailed information, facilitating easy interpretation of measurement data. The analyzer is equipped with user-friendly controls and a range of analytical functions to support detailed RF analysis and site assessment. Its robust design ensures reliable performance in diverse environments, whether in the field or laboratory. The Bird Electronic 25 MHz – 6000 MHz Site Analyzer is an essential tool for professionals needing accurate and extensive RF analysis capabilities..
Specifications
- Frequency Range: 25MHz to 6000MHz
- Measurement Parameters: VSWR, Return Loss, Cable Loss, DTF (Distance to Fault), and Power Measurement
- Measurement Accuracy: Typically ±5% of full scale
- VSWR Measurement Range: 1.00 to 65.00
- VSWR Measurement Resolution: 0.01
- Return Loss Measurement Range: 0 to 54dB
- Return Loss Measurement Resolution: 0.01dB
- Cable Loss Measurement Range: 0 to 20dB
- Cable Loss Measurement Resolution: 0.01dB
- Impedance: 50 ohms
- Connector Type: N-type (female)
- Display: Color TFT LCD
- Display Size: 4.3 inches
- Battery: Rechargeable Lithium-Ion battery
- Battery Life: Up to 4 hours of continuous operation
- Operating Temperature Range: -10°C to 55°C (14°F to 131°F)
- Storage Temperature Range: -20°C to 75°C (-4°F to 167°F)
- Dimensions: 9.5″ x 5.4″ x 2.8″ (240mm x 138mm x 72mm)
- Weight: 2.2 lbs (1 kg) including battery
- Interface: USB
