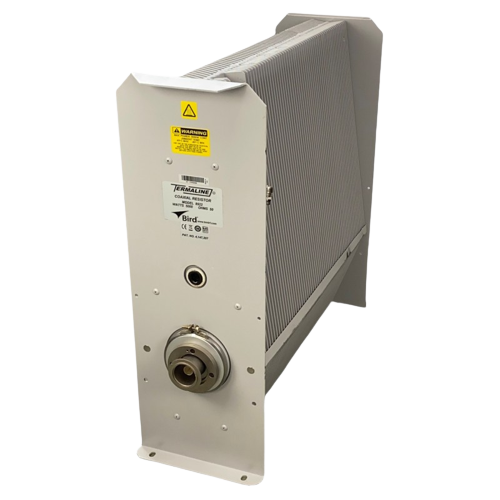

Bird 8922 Load 5kW 1GHz
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Bird 8922 Load is a high-power RF load meticulously engineered to handle up to 5,000 watts with precision and reliability across a frequency range of up to 1 GHz. This robust load is designed to meet the rigorous demands of high-power RF and microwave applications, where exceptional power handling and signal integrity are essential. Featuring an advanced coaxial design, the Bird 8922 ensures superior impedance matching and minimal signal reflections, which are critical for maintaining accurate and stable signal performance. The load is constructed from high-quality materials that are built to endure the stresses of continuous high-power operation, ensuring long-term durability and reliability. An efficient cooling system is incorporated to manage thermal loads effectively, preventing overheating and maintaining consistent performance even during prolonged usage. Its design allows for easy integration into various RF testing setups, making it suitable for both laboratory and field applications. The Bird 8922 Load is a crucial tool for engineers and technicians requiring a dependable and high-capacity solution for demanding RF testing and calibration tasks.
Specifications
- Frequency Range: Up to 1 GHz, designed for high-power RF and microwave applications.
- Power Rating: Handles up to 5,000 watts of RF power, catering to high-power testing needs.
- Connector Type: Features standard RF connectors such as N-type or similar, compatible with various RF equipment.
- Impedance: Typically 50 ohms, ensuring effective impedance matching and minimal signal reflections.
- Build Quality: Made from high-grade, durable materials for long-lasting performance and reliability.
- Cooling System: Includes an advanced cooling mechanism to effectively dissipate heat and prevent overheating.
- Dimensions: Designed to be robust yet compact, allowing for seamless integration into RF test systems.
- Weight: Substantial and sturdy, suitable for both laboratory environments and field use.
- Temperature Range: Operates within a temperature range suitable for standard RF testing conditions.
- Performance: Provides high power handling and a broad frequency range, ensuring reliable and accurate performance up to 1 GHz.
