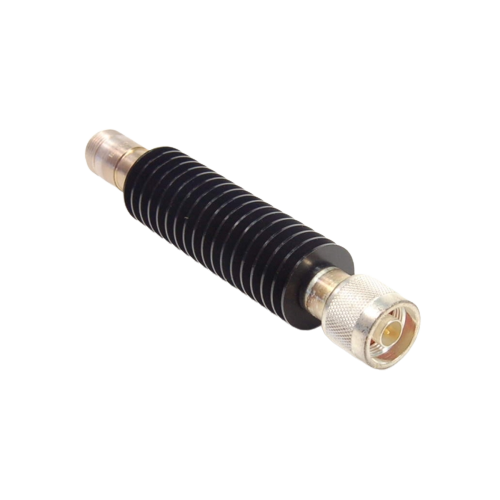

Bird 8306 Attenuator 25W 4GHz
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Bird 8306 Attenuator is a robust RF component designed for high-power signal attenuation, making it an invaluable tool for advanced RF and microwave testing. With a power handling capacity of up to 25 watts and an operational frequency range extending to 4 GHz, the Bird 8306 meets the demands of rigorous testing environments where high power and high frequency are critical. Its sophisticated coaxial design ensures minimal signal reflections and optimal impedance matching, which is essential for preserving signal integrity and achieving precise measurement results. The attenuator is built from high-quality, durable materials, enabling it to withstand continuous high-power operation while maintaining reliable performance. Featuring standard RF connectors such as N-type or SMA, the Bird 8306 integrates seamlessly into various RF test setups and equipment configurations. Its compact yet rugged design ensures versatility for use in both laboratory and field settings, providing engineers and technicians with a dependable solution for precise signal control. The Bird 8306 Attenuator combines high power handling, broad frequency coverage, and durability, making it a crucial component for accurate and reliable RF testing and calibration.
Specifications
- Frequency Range: Operates up to 4 GHz, suitable for a wide range of RF and microwave applications.
- Power Rating: Handles up to 25 watts of RF power, ideal for high-power attenuation needs.
- Attenuation Value: Provides precise attenuation levels to ensure accurate signal control and measurement.
- Connector Type: Includes standard RF connectors such as N-type or SMA, ensuring compatibility with various RF equipment.
- Impedance: Typically 50 ohms, offering effective impedance matching and minimizing signal reflections.
- Build Quality: Constructed from high-quality, durable materials to endure high-power operation and ensure long-term reliability.
- Dimensions: Compact design for easy integration into different test setups and equipment configurations.
- Weight: Lightweight yet robust, facilitating convenient handling and use in both laboratory and field environments.
- Temperature Range: Designed to operate within a temperature range suitable for standard testing conditions.
- Performance: High power handling capability and frequency range ensure accurate signal attenuation and measurement up to 4 GHz.
