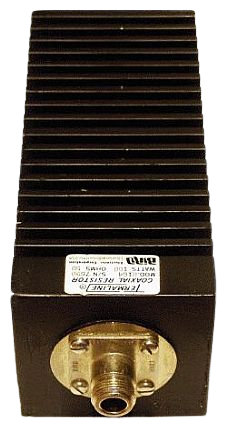

Bird 8164 Load 100W 2.4GHz
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Bird 8164 Load is a high-performance RF load designed to handle substantial power levels while ensuring precise impedance matching and efficient power dissipation. Capable of managing up to 100 watts of RF power, this load operates effectively across a frequency range up to 2.4 GHz, making it suitable for a wide range of RF and microwave applications. The Bird 8164 features a coaxial design that minimizes signal reflections and maintains consistent impedance matching, crucial for accurate performance in both laboratory and field environments. Its robust construction ensures durability and reliability under continuous high-power conditions, providing dependable performance for testing and calibrating RF equipment such as transmitters and amplifiers. The load comes equipped with standard RF connectors, such as N-type or SMA, allowing for easy integration into various test setups and equipment configurations. The compact and lightweight design enhances usability and handling, making the Bird 8164 versatile for different testing scenarios. With its combination of high power handling, broad frequency range, and rugged build, the Bird 8164 Load is an essential tool for engineers and technicians requiring accurate and reliable RF testing solutions.
Specifications
- Frequency Range: Effective up to 2.4 GHz, accommodating a broad range of RF and microwave applications.
- Power Rating: Capable of handling up to 100 watts of RF power, suitable for moderate to high-power testing.
- Connector Type: Equipped with standard RF connectors such as N-type or SMA, ensuring compatibility with various RF equipment.
- Impedance: Typically 50 ohms, providing effective impedance matching and reducing signal reflections.
- Build Quality: Rugged and durable construction designed to withstand high-power operation and deliver reliable performance.
- Dimensions: Compact design for easy integration into different test setups and equipment configurations.
- Weight: Lightweight yet sturdy, facilitating convenient handling and use in both laboratory and field settings.
- Temperature Range: Operates effectively within a temperature range suitable for standard testing conditions.
- Performance: High power handling capability and frequency range ensure precise power dissipation and impedance matching up to 2.4 GHz.
