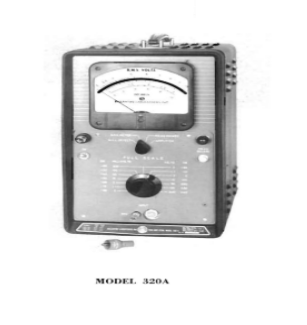

Ballantine 320A AC Voltmeter
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Ballantine 320A AC Voltmeter is a versatile and reliable tool for measuring alternating current voltage levels. With a wide range of measurement capabilities and high accuracy, this voltmeter is ideal for a variety of industrial and laboratory applications. Its compact design and user-friendly interface make it easy to use, while its durable construction ensures long-lasting performance. Whether you need to measure voltage in a power distribution system or test electronic equipment, the BALLANTINE 320A AC Voltmeter is a valuable instrument to have in your toolkit.
Specifications
– Model: 320A
– Type: AC Voltmeter
– Manufacturer: Ballantine
– Accuracy: ±1.5% of full scale
– Frequency Range: 50 Hz to 20 kHz
– Input Impedance: 10 MΩ
– Sensitivity: 10 mV full scale
– Operating Temperature Range: 0°C to 50°C
– Power Requirements: 100-130 VAC, 50/60 Hz, 10 W
– Dimensions: 7.75″ x 5″ x 7.5″
– Weight: 4 lbs.
SKU: BALLANTINE 320A
Category: AC Voltmeter
Manufacturer: Ballantine
Model Number: 320A
Response Time:
Indicator – 1 to 2 sec (higher values supplied on special order)
Mean square output – 0.05 sec
Warm-up Time – Less than 0.3% drift after 15 min
Ambient Temperature Effect – Drift is less than 1/10 of stated accuracy 25°C +5°C
Stability
Expected calibration stability: 5000 operating hrs
Recommended calibration periods: 1000 operating hrs
Effect of line voltage change: Less than 1/10 stated accuracy for 115/230 V ±10%
Amplifier Characteristics
Output: Binding posts in rear, balanced or single ended
Max gain: 90 db
Max output: 50 V into 20,000 ohms; 10 V into 2,000 ohms
Source impedance: 350 ohms at 1 kc
Frequency response: ±0.5 db from 5 cps to 2 Mc; -1 db at 4 Mc
Mean Square DC Output
Max Output: -1.0 V (0.2 V corresponds to full scale deflection)
Source resistance: 1,000 ohms
Power Requirements – 115/230 V, 50 to 420 cps, 90 W
Dimensions (inches) – Portable: 15% H x 8% W x 11% D Rack: 8 H x 19 W x 12 D
Weight (pounds)-Portable or rack: 22
Shipping weight: 27 for portable, 40 for rack
