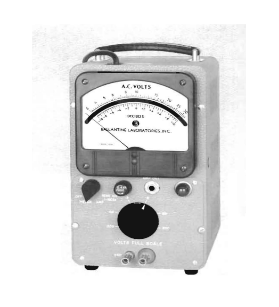

Ballantine 300H AC Voltmeter
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Ballantine 300H AC Voltmeter is a highly accurate and reliable instrument used for measuring alternating current voltage levels. With a sturdy construction and user-friendly design, this voltmeter is suitable for both laboratory and field applications. Its large, easy-to-read display ensures quick and precise readings, while its wide range of measurement capabilities makes it versatile for a variety of electrical testing needs. The BALLANTINE 300H AC voltmeter is a trusted tool for professionals in the electrical industry, providing accurate and consistent results time after time.
Specifications
– Measurement range: 0-300V AC
– Accuracy: ±2% of full scale
– Frequency range: 50-500 Hz
– Input impedance: 20 kΩ/V
– Overload protection: 1000V AC for 1 minute
– Operating temperature: -10°C to 50°C
– Power supply: 9V battery
– Dimensions: 150 x 80 x 40 mm
– Weight: 300g
SKU: BALLANTINE 300H
Category: AC Voltmeter
Manufacturer: Ballantine
Model Number: 300H
Voltage range: 30 microvolts to 330 volts. Frequency range: 10 cps to 1 Mc.
Accuracy; at all points on scale.
300 μV to 300 V: 10 cps to 700 kc…2%
700 kc to 1 Mc…3%
30μV to 300 μV: (in SENS X10 position) the accuracy is 5% for frequencies 100 cps to 100 kc. Measurements above and below this band may be made with reduced accuracy.
Input impedance: 2 megohms shunted by 15 pF except 25 pF on the most sensitive range.
Decibel range: -90 to +50 db referred to 1 volt.
Stability: Change in indication with power supply variation
from 11510 volts.
Tubes: Four type 6AU6, one type OA2, and one type 6X4.
Power supply: 115/230 volts, 50-420 cps, approx. 35 watts.
Standard finish: Panel, gray crackle; box, gray wrinkle.
Dimensions:
Portable: 11″ H, 6″ W, 7″ D.
Rack: 62″ H, 19″ W, 61⁄2″ D.
Weight (lbs.): Portable 10; rack 11.
Shipping Weight (lbs.): Portable 13; rack 26.
