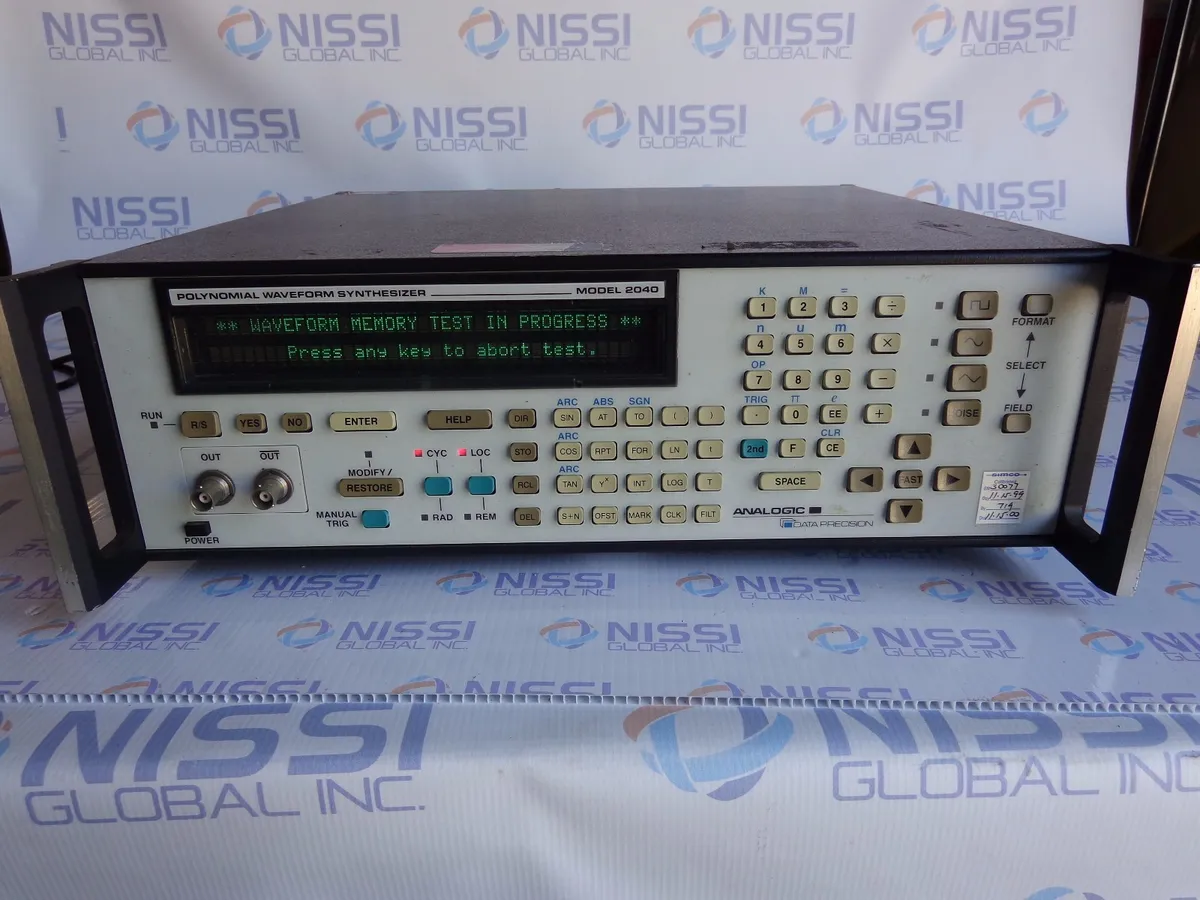

ANALOGIC 2040 Function Generator / Polynomial WFS – 800MHz
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The ANALOGIC 2040 Function Generator / Polynomial Waveform Synthesizer (WFS) is a state-of-the-art instrument designed for generating complex and precise waveforms up to 800 MHz. This function generator is ideal for high-frequency applications in fields such as telecommunications, aerospace, and advanced research laboratories. Its sophisticated polynomial waveform synthesis technology allows users to create highly accurate and stable signals, supporting a wide range of waveform types including sine, square, triangle, ramp, and arbitrary shapes. The 2040 model boasts exceptional frequency resolution and accuracy, making it a powerful tool for testing and development tasks that require meticulous signal generation and analysis. The intuitive interface and programmable features enhance user experience, while the robust build ensures durability and reliable performance over extended periods. The high-resolution display provides clear visual feedback, making it easier to navigate through settings and adjustments. This function generator is equipped with multiple modulation and sweep modes, ensuring versatility in various applications. Additionally, its advanced connectivity options allow seamless integration with other laboratory instruments and systems.
Specifications
- Frequency Range: DC to 800 MHz
- Waveform Types: Sine, Square, Triangle, Ramp, Arbitrary, and Polynomial
- Amplitude Range: Up to 5 V peak-to-peak (adjustable)
- Amplitude Accuracy: ±0.5% of setting
- Frequency Resolution: 1 μHz
- Frequency Accuracy: ±0.001% of setting
- Output Impedance: 50 ohms
- Harmonic Distortion: ≤ -60 dBc (typical for sine wave at 1 MHz)
- Phase Noise: ≤ -115 dBc/Hz at 10 kHz offset
- Rise/Fall Time: ≤ 2 ns (typical for square wave)
- Non-Volatile Memory: 20 user-defined waveform storage slots
- Modulation Types: AM, FM, PM, PWM, FSK
- Sweep Modes: Linear, logarithmic, and arbitrary
- Trigger Modes: Internal, external, gated
- Display: High-resolution color LCD
- Interfaces: USB, GPIB, Ethernet (optional)
- Power Supply: 100-240 VAC, 50/60 Hz
- Dimensions: 88 mm x 435 mm x 450 mm (3.5 inches x 17.1 inches x 17.7 inches)
- Weight: Approximately 9 kg (19.8 lbs)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
– The ANALOGIC 2040 Function Generator is a versatile electronic device used for generating a variety of waveforms.
– It has a frequency range of up to 800MHz, making it suitable for a wide range of applications.
– The Function Generator supports both analog and digital modulation techniques.
– It can generate various types of waveforms, including sine, square, triangle, pulse, ramp, and arbitrary waveforms.
– The device offers precise amplitude and frequency control, allowing users to customize the output waveform as needed.
– The Function Generator is equipped with a high-quality frequency synthesis system, ensuring accurate and stable signal generation.
– It has advanced features such as frequency sweep, burst mode, and modulation capabilities (AM, FM, PM, and FSK).
– The Polynomial WFS (Waveform Synthesis) feature allows users to create complex waveforms by specifying the coefficients of a polynomial equation.
– The device provides a user-friendly interface for easy operation and programming.
– It is widely used in various fields, including research laboratories, educational institutions, telecommunications, and electronic testing.
