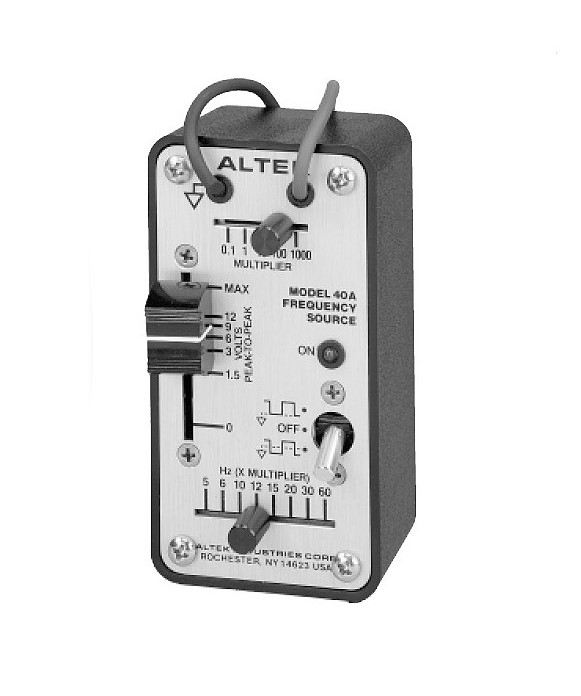

ALTEK 40A Frequency Source
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The ALTEK 40A Frequency Source is a highly reliable and accurate instrument that is widely used in various industries. It is designed to generate precise frequency signals for calibration and testing purposes. With its advanced technology and superior performance, the ALTEK 40A ensures high stability and low distortion, making it ideal for applications that require precise frequency control. It offers a wide frequency range and allows users to easily set the desired frequency with its user-friendly interface. Moreover, the ALTEK 40A is built with durable materials, ensuring long-lasting performance and resistance to wear and tear. Overall, the ALTEK 40A Frequency Source is a trusted and versatile instrument that meets the demanding needs of professionals in different fields.
Specifications
– Frequency range: 1Hz to 40MHz
– Frequency accuracy: ±1ppm
– Frequency stability: ±1ppm
– Output waveform: Square wave, sine wave, triangle wave
– Output amplitude: 0.1Vpp to 20Vpp
– Output impedance: 50Ω
– Duty cycle: Adjustable from 1% to 99%
– Frequency resolution: 1mHz
– Harmonic distortion: <0.5% (sine wave)
– Phase noise: -120dBc/Hz @ 1MHz offset
– Modulation: AM, FM, PM, PWM
– External synchronization: TTL level input
– Power supply: AC 100-240V, 50/60Hz
– Dimensions: 220mm x 80mm x 200mm
– Weight: 1.5kg
STORAGE TEMPERATURE: -22 to +185° F (-30 to +85°C)
AMBIENT TEMPERATURE EFFECT: ±0.001%/°C
BATTERY: 2 x 9-volt Alkaline
BATTERY LIFE: Nominal operating time of 200 hours. Batteries
When storing the unit for more than three months, it should be removed.
BATTERY INDICATION: If the ED flashes frequently,
OK with the batteries
SIZE: 2-1/8 x 4 x 2-1/4 inches (54x102x55mm)
WEIGHT: 7 oz. (0.2 kg)
OPTIONAL CARRYING CASE: Belt loop and zipper closure
ACCURACY: ±0.0008% (8 parts per million)
FREQUENCIES: 5, 6, 10, 12, 15, 20, 30 and 60 Hz times
multiplier
MULTIPLIER: 0.1, 1, 10, 100 and 1000 times frequency scale
OUTPUT: Nominal 15V peak-to-peak square wave (1:3 ratio
20KHz, 2:5 ratio 12KHz)
OUTPUT MODES: which was chosen; zero-based or zero-based
crossing
ATTENUATOR: Logarithmic taper and sliding potentiometer
MAXIMUM OUTPUT IMPEDANCE: 2500 ohms
OUTPUT CURRENT DRIVE: 6mA at max output voltage
RISE TIME: 1 microsecond nominal into resistive load
OPERATING AMBIENT TEMPERATURE: 14 to 158° F
(-10 to +70°C)
