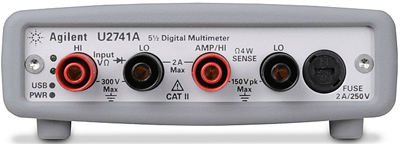

Agilent U2741A Usb Modular Digital Multimeter
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent U2741A USB Modular Digital Multimeter is a versatile and high-performance instrument that offers accurate and reliable measurements for a wide range of applications. With its USB connectivity, it can be easily connected to a computer, making it convenient for data logging and remote control. The modular design allows for easy customization, with optional modules available for additional functionality such as temperature and capacitance measurements. The U2741A features a high-resolution display, clear user interface, and a variety of measurement capabilities including voltage, current, resistance, frequency, and diode tests. Whether in a laboratory, production line, or field testing, the Agilent U2741A provides precise measurements and advanced features to meet the needs of professionals in various industries.
Specifications
– Measurement capabilities: DC voltage, AC voltage, DC current, AC current, resistance, diode test, continuity test
– Measurement ranges: DC voltage: 100 mV to 1000 V, AC voltage: 100 mV to 750 V, DC current: 100 μA to 3 A, AC current: 100 μA to 3 A, resistance: 10 Ω to 100 MΩ
– Resolution: DC voltage: 100 μV, AC voltage: 100 μV, DC current: 100 nA, AC current: 100 nA, resistance: 10 mΩ
– Accuracy: DC voltage: ±(0.025% + 5 μV), AC voltage: ±(0.5% + 20 μV), DC current: ±(0.05% + 200 nA), AC current: ±(0.5% + 200 nA), resistance: ±(0.025% + 10 mΩ)
– Maximum sample rate: 1.8 MSa/s
– Maximum reading rate: 1.8 kSa/s
– Input impedance: 10 MΩ
– Interface: USB 2.0
– Power supply: USB bus-powered
– Dimensions: 102 mm x 33 mm x 22 mm
– Weight: 65 g
Agilent U2741A is also available with the following specs and model:
- Digital Multimeter – USB Modular – 5.5digit
