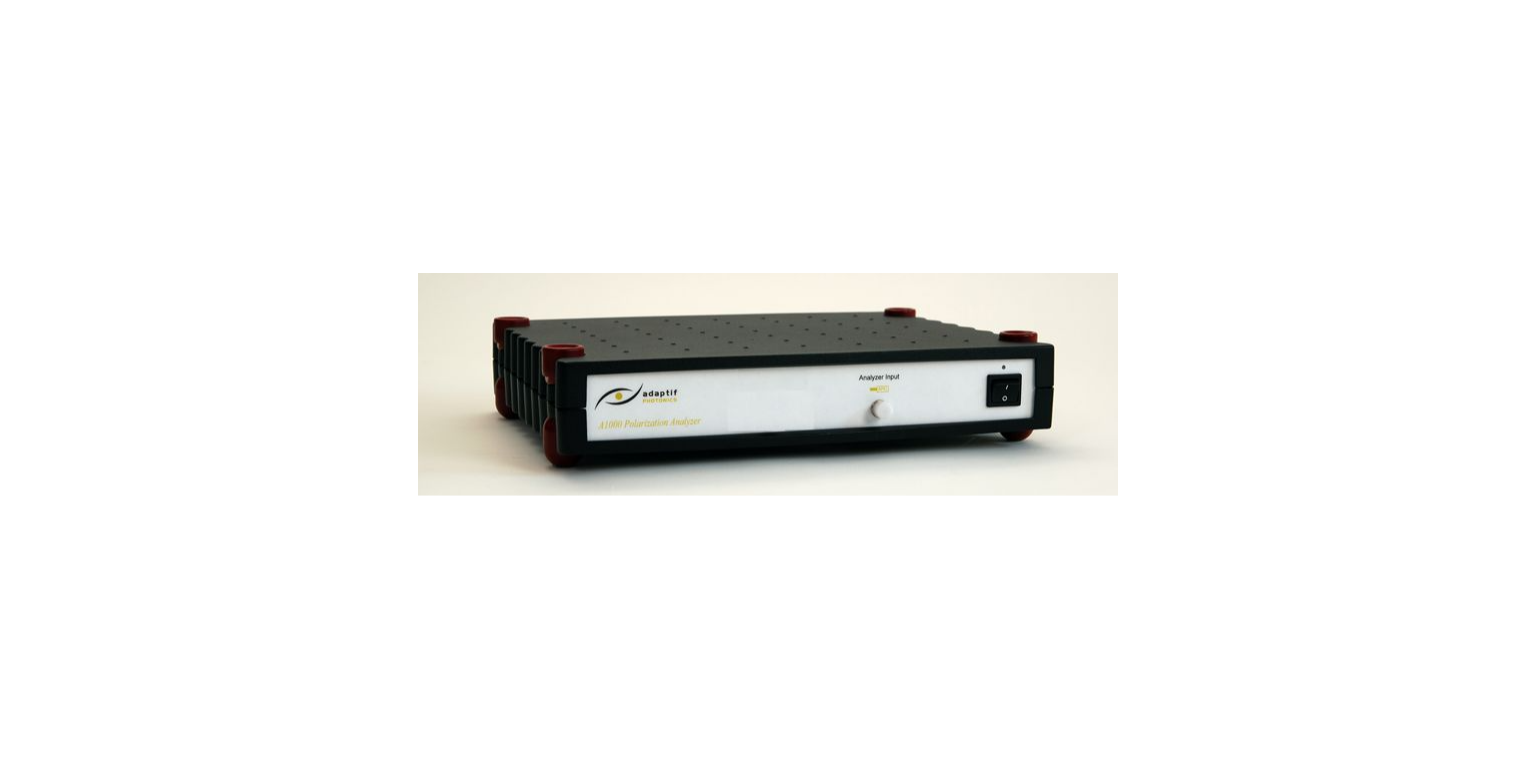

Agilent Technologies N7781A Polarization Analyzer – Benchtop – Mainframe – Former Adaptif A1000
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent Technologies N7781A Polarization Analyzer is an advanced tool designed for use on a workbench. It is a mainframe device that excels in analyzing polarization. Initially known as the Adaptif A1000 model, the N7781A has undergone significant enhancements to offer improved functionality and precision. This polarization analyzer finds extensive application in telecommunications, optical research, and manufacturing sectors. With its advanced features and dependable performance, the Agilent Technologies N7781A Polarization Analyzer is an essential tool for professionals dealing with polarized light and optical systems.
Specifications
- Product Type: Polarization Analyzer (Benchtop)
- Former Model: Adaptif A1000
- Wavelength Range: 1260 nm to 1640 nm
- Measurement Accuracy: ±0.25° for polarization angle
- Resolution: 0.01° for polarization angle, 0.001 dB for degree of polarization (DOP)
- Dynamic Range: > 40 dB
- Measurement Speed: Up to 1 MSa/s (Mega-samples per second)
- Degree of Polarization (DOP) Range: 0 to 100%
- Optical Input Power Range: -40 dBm to +10 dBm
- Input Type: Single-mode fiber (SMF) input with FC/PC or FC/APC connectors
- User Interface: Front panel display with keypad, remote control via USB, LAN, and GPIB
- Control Software: Compatible with proprietary control and analysis software
- Data Output Formats: Compatible with standard data formats (e.g., CSV, TXT)
- Dimensions: 105 mm x 320 mm x 400 mm (H x W x D)
- Weight: Approximately 6 kg
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Humidity Range: < 80% relative humidity (non-condensing)
- Applications: Characterization of optical components, polarization mode dispersion (PMD) measurements, polarization-dependent loss (PDL) testing, and general polarization analysis
