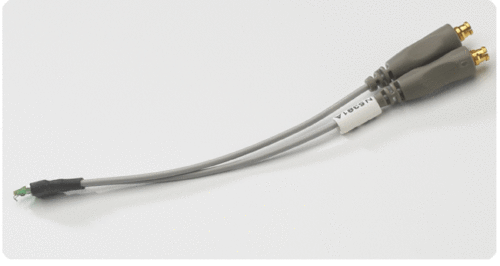

Agilent N5381A Infiniimax Ii 12 Ghz Differential Solder-In Probe Head
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent N5381A Infiniimax II 12 GHz Differential Solder-In Probe Head is a high-performance device for precise signal measurements in electronic circuitry. With a frequency range of up to 12 GHz, this probe head enables engineers and researchers to precisely collect and analyze differential signals. Its solder-in construction offers a safe and robust connection while reducing signal distortion and noise. The N5381A probe head is compatible with a wide range of Agilent Infiniium series oscilloscopes, allowing for easy integration into existing measurement settings. Because of its sophisticated qualities, such as low inductance and high bandwidth, it is an excellent choice for demanding applications in industries such as telecommunications, aerospace, and automotive. Overall, the Agilent N5381A Infiniimax II 12 GHz Differential Solder-In Probe Head offers exceptional performance and reliability for accurate signal measurements in high-frequency circuits.
Specifications
– Probe type: Differential solder-in probe head
– Bandwidth: 12 GHz
– Input impedance: 100 Ω differential
– Maximum differential voltage: ±5 V
– Common mode rejection ratio: >25 dB at 1 GHz
– Rise time: <29 ps
– Input capacitance: <0.25 pF differential
– Input voltage noise: <8 mVrms at 1 GHz
– Connector type: SMA (female)
Agilent N5381A is also available with the following specs and model:
- InfiniiMax – Differential Solder In Probe Head – 12GHz
