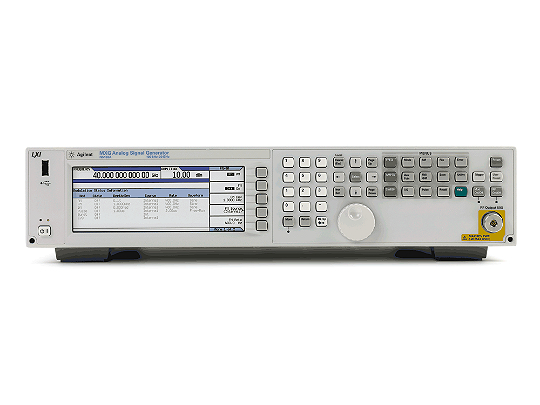

Agilent N5183M Signal Gen/Synthesizers/Sweepers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent N5183M Signal Generator, part of the MXG X-Series, is a high-performance signal generator designed to meet the demanding requirements of modern RF and microwave testing. With its advanced capabilities, the N5183M is suited for a wide range of applications, including wireless communications, radar, and electronic warfare. This signal generator offers exceptional signal purity and stability, ensuring accurate and reliable test results. It features a broad frequency range, high output power, and versatile modulation capabilities, making it ideal for simulating a variety of complex signals and conditions. The N5183M is equipped with a wide range of output options and can generate signals with minimal phase noise, which is critical for testing high-precision components and systems. The instrument’s user-friendly interface and advanced connectivity options, including GPIB, LAN, and USB, facilitate easy integration into automated test systems and allow for remote operation. Additionally, the N5183M supports a range of analysis tools and functionalities that enable detailed performance evaluation and troubleshooting of RF and microwave systems. Its robust performance and flexible configuration make the Agilent N5183M Signal Generator a valuable tool for engineers and researchers working in high-frequency domains.
Specifications
- Frequency Range: 250 kHz to 6 GHz
- Output Power:
- Range: -130 dBm to +30 dBm (varies with frequency)
- Accuracy: ±0.5 dB
- Frequency Resolution: 1 Hz
- Signal Purity:
- Phase Noise:
- At 1 GHz, 10 kHz offset: -120 dBc/Hz
- At 10 GHz, 10 kHz offset: -100 dBc/Hz
- Harmonic Distortion: < -60 dBc
- Phase Noise:
- Modulation Capabilities:
- AM (Amplitude Modulation): Yes, with various waveforms
- FM (Frequency Modulation): Yes, with high deviation accuracy
- PM (Phase Modulation): Yes, including linear and nonlinear modulation
- Pulse Modulation: Yes, with adjustable pulse width and repetition rate
- Connectivity:
- Interfaces: GPIB, LAN, USB
- Remote Operation: Full support for remote control and automation
- Display Type: High-resolution color LCD with graphical user interface
- Power Supply: 100-240 V AC, 50/60 Hz
- Dimensions: 426 mm x 177 mm x 490 mm (16.8 in x 7.0 in x 19.3 in)
- Weight: Approximately 22 kg (48 lbs)
