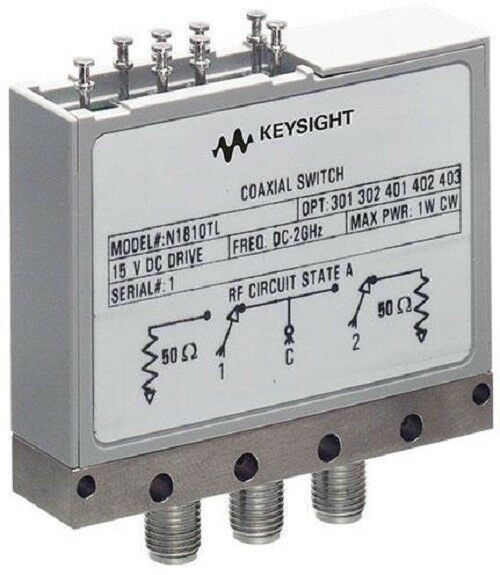

Agilent N1810TL Switch
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent N1810TL Switch is a high-performance electronic switch designed for use in a variety of test and measurement applications. It features a frequency range extending up to 26.5 GHz, making it suitable for high-frequency RF and microwave testing. The N1810TL offers exceptional switching speed and low insertion loss, ensuring minimal signal degradation and quick transitions between signal paths. It supports a variety of switch configurations, including single-pole multi-throw (SPMT) and multi-pole multi-throw (MPMT) arrangements, providing flexibility for different testing scenarios. The switch is designed with high durability and reliability, capable of handling high-power signals with precision. Its integration into test systems is facilitated by standard interfaces, including GPIB and LAN, allowing for seamless automation and remote control. The Agilent N1810TL is an essential tool for engineers and researchers requiring accurate and efficient switching in advanced RF and microwave applications.
Specifications
- Frequency Range: Up to 26.5 GHz
- Configuration: Single-pole multi-throw (SPMT) or multi-pole multi-throw (MPMT) configurations
- Insertion Loss: Typically < 1.5 dB at 26.5 GHz
- Return Loss: Typically > 15 dB
- Switching Speed: Fast switching times (specific times depend on configuration)
- Isolation: Typically > 60 dB at 26.5 GHz
- Power Handling: Up to +30 dBm (dependent on configuration)
- Control Interfaces: GPIB, LAN, and optional serial interfaces
- Operating Temperature Range: 0°C to +50°C
- Power Supply: Typically supplied by an external power source
