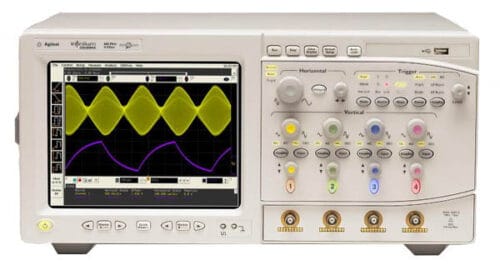

Agilent Mso8104A Infiniium Mixed Signal Oscilloscope: 1 Ghz, 4 Ch And 16 Digi
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Engineers and researchers working on a variety of electrical applications can benefit from the robust and adaptable Agilent MSO8104A Infiniium Mixed Signal Oscilloscope. It offers high-speed signal gathering and analysis capabilities with a 1 GHz bandwidth. This oscilloscope has 16 digital channels and 4 channels for analog input, allowing it to measure numerous signals simultaneously and analyze digital signals. Anyone working in the electronics industry needs to have this tool because of how simple it is to capture and analyze complex waveforms thanks to its extensive capabilities and user-friendly interface.
Specifications
– Model: Agilent Mso8104A
– Type: Infiniium Mixed Signal Oscilloscope
– Bandwidth: 1 GHz
– Number of Channels: 4
– Digital Channels: 16
– Maximum Sample Rate: 20 GSa/s
– Maximum Record Length: 4 Mpts
– Vertical Resolution: 8 bits
– Rise Time: <350 ps
– Input Impedance: 1 MΩ || 13 pF
– Input Coupling: AC, DC, DC 50 Ω
– Trigger Modes: Edge, Glitch, Runt, Timeout, Pattern, State, Setup/Hold, Window, Delay, Qualified
– Display: 12.1-inch XGA TFT color display
– Connectivity: USB, LAN, GPIB, VGA
– Dimensions: 17.5″ x 8.5″ x 16.8″
– Weight: 22.2 lbs
Agilent Mso8104A is also available with the following specs and model:
- Oscilloscope – Mixed Signal – 4+16ch / 1GHz / 2/4 GSa/s
