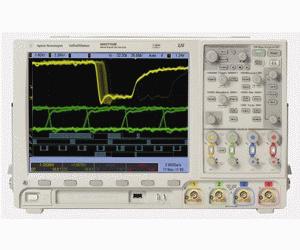

Agilent Mso7014B Mixed Signal Oscilloscope: 100 Mhz, 4 Analog Plus 16 Digital
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Agilent’s MSO7014B Mixed Signal Oscilloscope is a potent tool with a variety of applications for precise and accurate measurement. It delivers high-resolution display of analog and digital signals with a frequency bandwidth of 100 MHz. With four analog channels and 16 extra digital channels, the oscilloscope offers complete testing capabilities for both analog and digital signals at once. This makes it simple for engineers and workers to assess intricate systems and signals. Agilent’s Mso7014B has cutting-edge features like deep memory, quick waveform update rates, and sophisticated triggering options that guarantee accurate measurements. It is an invaluable tool for experts in a variety of sectors, including electronics, telecommunications, and research and development, thanks to its user-friendly interface and simple settings.
Specifications
– Model: Agilent Mso7014B
– Type: Mixed Signal Oscilloscope
– Analog Channels: 4
– Digital Channels: 16
– Bandwidth: 100 MHz
– Sample Rate: 2 GSa/s
– Memory Depth: 100 Mpts
– Waveform Update Rate: 100,000 wfms/s
– Display: 8.5-inch color TFT LCD
– Vertical Resolution: 8 bits
– Input Impedance: 1 MΩ || 15 pF
– Vertical Sensitivity Range: 2 mV/div to 10 V/div
– Time Base Range: 1 ns/div to 1000 s/div
– Trigger Types: Edge, Pulse Width, Pattern, Runt, Setup and Hold, Rise/Fall Time, Video
– Connectivity: USB, LAN, GPIB
– Dimensions: 426 mm x 223 mm x 181 mm
– Weight: 6.9 kg
Agilent Mso7014B is also available with the following specs and model:
- Mixed Signal – 4+19ch / 100MHz
