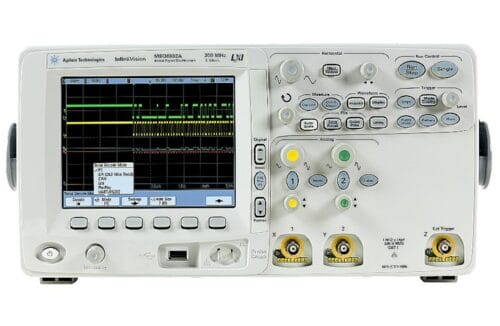

Agilent Mso6032A Mixed Signal Oscilloscope: 300 Mhz, 2 Scope And 16 Digital C
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
An very sophisticated mixed signal oscilloscope with many features and capabilities is the Agilent MSO6032A. It can reliably capture and analyze signals with high frequency components thanks to its 300 MHz bandwidth. Users of this oscilloscope can concurrently observe and analyze analog and digital signals thanks to its two scope channels and 16 digital channels. For debugging and troubleshooting digital circuitry, the digital channels’ exact and thorough measurements are appropriate. The MSO6032A also features a speedy waveform update rate, a substantial amount of memory depth, and sophisticated triggering options, allowing users to effectively analyze complex waveforms and pinpoint problems.
Specifications
– Model: Agilent MSO6032A
– Mixed Signal Oscilloscope
– Bandwidth: 300 MHz
– 2 Scope Channels
– 16 Digital Channels
– Specifications:
– Analog Bandwidth: 300 MHz
– Maximum Real-time Sample Rate: 2 GSa/s
– Maximum Memory Depth: 8 Mpts
– Rise Time: ≤1.17 ns
– Vertical Resolution: 8 bits
– Input Coupling: AC, DC, GND
– Input Impedance: 1 MΩ ±2%
– Maximum Input Voltage: 300 Vrms CAT II
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Window, Pattern, Video, I²C, SPI, UART, RS232
– Display: 8.5-inch TFT color LCD with 640×480 resolution
– Connectivity: USB, LAN, GPIB (optional)
– Dimensions: 439 mm x 220 mm x 236 mm
– Weight: 6.2 kg
Agilent Mso6032A is also available with the following specs and model:
- Oscilloscope – Mixed Signal – 2+16ch / 300MHz
