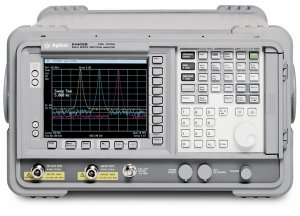

Agilent E4411B Spectrum Analyzer, 9 Khz To 1.5 Ghz (75-Ohm)
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Agilent’s E4411B Spectrum Analyzer is a multifunctional, high-performance tool for precise and accurate signal analysis. It can measure a variety of signals with a frequency range of 9 kHz to 1.5 GHz. The input impedance of 75 ohm enables versatility in systems and applications. The remarkable sensitivity and resolution of this spectrum analyzer makes it simple for users to find and examine weak signals. It is the perfect option for experts in telecommunications, electronics, and RF design thanks to its cutting-edge capabilities and user-friendly interface. The Agilent E4411B Spectrum Analyzer is a useful tool in any testing or laboratory setting since it consistently produces correct findings, whether used for research, development, or troubleshooting.
Specifications
– Frequency range: 9 kHz to 1.5 GHz
– Input impedance: 75 ohms
– Amplitude measurement range: -114 dBm to +30 dBm
– Resolution bandwidth (RBW): 1 Hz to 3 MHz
– Video bandwidth (VBW): 1 Hz to 3 MHz
– Displayed average noise level (DANL): -135 dBm
– Phase noise: -100 dBc/Hz offset at 10 kHz
– Maximum input level: +30 dBm
– Third order intermodulation distortion (TOI): 20 dBm
– Spurious response: -80 dBc
– Input attenuator range: 0 to 50 dB, in 1 dB steps
– Input coupling: AC, DC, or ground
– Input connector: Type-N female
– Demodulation modes: AM, FM, and FSK
– Weight: 13.2 lbs (6 kg)
– Dimensions: 6.9 x 15.4 x 17.9 inches (175 x 391 x 455 mm)
Agilent E4411B is also available with the following specs and model:
- Spectrum Analyzer – ESA – L Series – 1MHz-1.5GHz
