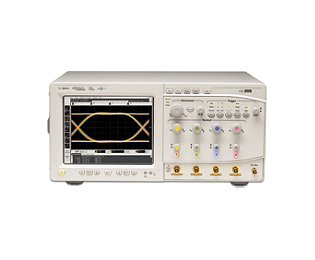

Agilent Dso80604B 6Ghz 4Ch 40Gsa/S Infiniium Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent DSO80604B is a high-performance oscilloscope designed for engineers and researchers working on cutting-edge electronic designs. With a bandwidth of 6 GHz and 4 channels, this oscilloscope offers exceptional measurement accuracy and precision for a wide range of applications. The 40 Gsa/s sample rate ensures that even the fastest and most complex signals can be captured and analyzed with ease. The Infiniium technology employed in this oscilloscope provides advanced signal visualization and analysis capabilities, allowing users to quickly identify and troubleshoot issues in their designs. With its industry-leading performance and advanced features, the Agilent DSO80604B is an indispensable tool for any professional working in the field of electronic design and testing.
Specifications
– Bandwidth: 6 GHz
– Channels: 4
– Sample Rate: 40 Gsa/s
– Memory Depth: 4 Mpts per channel
– Vertical Resolution: 8 bits
– Rise Time: < 35 ps
– Input Sensitivity Range: 1 mV/div to 10 V/div
– Maximum Input Voltage: 400 V (DC + peak AC)
– Input Impedance: 50 Ω
– Input Coupling: AC, DC, GND
– Trigger Types: Edge, Pattern, Pulse Width, Runt, Timeout, Setup/Hold, Serial Data, TV, I2C, SPI, CAN, USB, Ethernet
– Waveform Measurements: Amplitude, Frequency, Period, Rise/Fall Time, Pulse Width, Overshoot/Undershoot, Duty Cycle, Phase, Delay, etc.
– Connectivity: USB, LAN, GPIB
– Display: 12.1-inch color TFT LCD, 1024 x 768 resolution
– Dimensions: 18.98″ x 12.80″ x 6.96″ (W x H x D)
– Weight: 33.1 lbs
