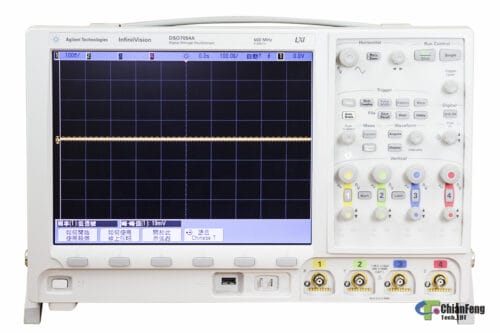

Agilent Dso7054A Oscilloscope: 500 Mhz, 4 Analog Channels
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent Dso7054A Oscilloscope is an advanced equipment designed for precise and accurate measurements in electronic systems. With a bandwidth of 500 MHz and four analog channels, it offers high-performance capabilities for a wide range of applications. This oscilloscope enables users to analyze and visualize electrical signals with exceptional clarity and detail. It provides a large display screen, intuitive user interface, and advanced triggering options, allowing for efficient and reliable measurements. Whether used in research laboratories, engineering projects, or educational settings, the Agilent Dso7054A Oscilloscope delivers exceptional performance and versatility.
Specifications
– Model: Agilent Dso7054A
– Bandwidth: 500 MHz
– Number of analog channels: 4
– Sampling rate: 4 GSa/s
– Memory depth: 2 Mpts per channel
– Vertical resolution: 8 bits
– Rise time: <700 ps
– Input impedance: 1 MΩ and 15 pF
– Maximum input voltage: 300 Vrms CAT II
– Display: 8.5-inch color TFT LCD
– Waveform update rate: 100,000 waveforms/s
– Trigger types: Edge, pulse, runt, video, slope, pattern, serial, and bus
– Connectivity options: USB, LAN, GPIB
– Power requirements: 100-240 VAC, 50/60 Hz
– Dimensions: 428 mm x 220 mm x 147 mm
– Weight: 4.9 kg
