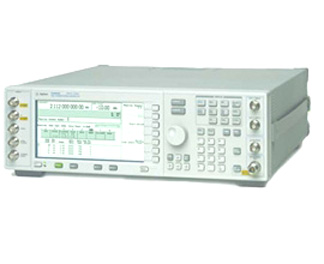

Agilent D3000A Signal Generator
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent D3000A Signal Generator is a versatile and high-performance instrument designed for generating a wide range of signals for testing and development in various electronic applications. Covering a broad frequency range, this signal generator is capable of producing highly accurate and stable signals, making it ideal for tasks such as device testing, signal analysis, and system verification. It features advanced modulation capabilities, including AM, FM, PM, and pulse modulation, providing comprehensive support for complex testing scenarios. The D3000A boasts a user-friendly interface with a clear display and intuitive controls, facilitating easy operation and quick setup. Additionally, its robust design ensures reliable performance even in demanding environments. With its precision, flexibility, and ease of use, the Agilent D3000A Signal Generator is a valuable tool for engineers and technicians in the fields of communications, aerospace, defense, and electronics manufacturing.
Specifications
- Frequency Range: 100 kHz to 3 GHz
- Frequency Resolution: 0.01 Hz
- Frequency Stability: ±1 ppm/year
- Output Power Range: -120 dBm to +13 dBm
- Power Resolution: 0.1 dB
- Phase Noise: -110 dBc/Hz at 20 kHz offset
- Harmonics: Less than -30 dBc
- Non-Harmonics: Less than -60 dBc
- Modulation Types: AM, FM, PM, pulse modulation
- Modulation Frequency Range: DC to 100 kHz (AM/FM/PM), DC to 10 MHz (pulse)
- Modulation Depth (AM): 0% to 100%
- Frequency Deviation (FM): Up to 1 MHz
- Phase Deviation (PM): Up to 10 radians
- Pulse Modulation: On/Off ratio > 80 dB, rise/fall time < 10 ns
- Sweep Modes: Frequency, power, and phase sweeps
- Connectivity: GPIB, LAN, USB interfaces
- Display: High-resolution LCD screen
- Dimensions: 140 mm (H) x 350 mm (W) x 450 mm (D)
- Weight: Approximately 10 kg (22 lbs)
- Power Requirements: 100-240 V AC, 50/60 Hz
- Operating Temperature Range: 0°C to 50°C
- Remote Programming: SCPI (Standard Commands for Programmable Instruments)
