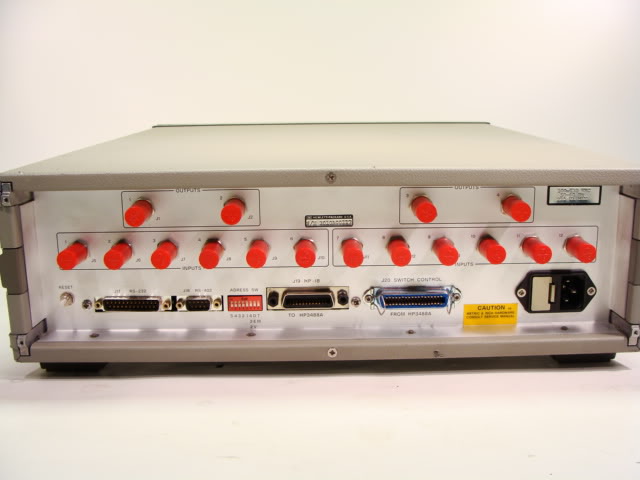

Agilent 8760A Dynamic Range Extender
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent 8760A Dynamic Range Extender is a powerful instrument that enhances the dynamic range of signal analyzers. It is designed to expand the measurement capabilities of these analyzers, allowing for accurate and reliable measurements in high dynamic range applications. The extender operates in the frequency range of 100 kHz to 26.5 GHz, providing excellent performance across a wide range of frequencies. With its high linearity and low noise figure, the 8760A ensures precise measurements even in challenging environments. It offers a selectable gain control, allowing users to optimize the dynamic range for different measurement scenarios. Overall, the Agilent 8760A Dynamic Range Extender is a versatile tool that enhances the capabilities of signal analyzers and enables accurate measurements in various high dynamic range applications.
Specifications
– Frequency range: DC to 26.5 GHz
– Dynamic range: 80 dB
– Insertion loss: 2.5 dB
– Maximum input power: +30 dBm
– Maximum output power: +10 dBm
– Impedance: 50 ohms
– Connectors: Type N female (input and output)
– Dimensions: 10.0 x 2.0 x 2.5 inches
– Weight: 1.2 lbs
– Power requirements: 100-240 VAC, 50-60 Hz, 10 W
