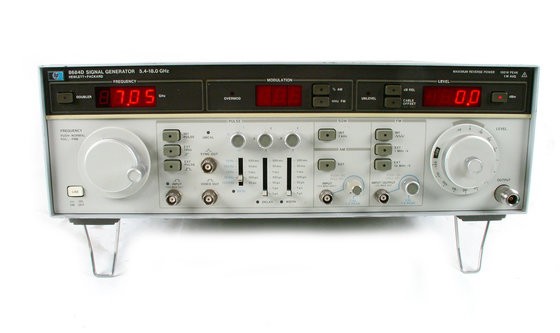

Agilent 8684D Signal Gen/Synthesizers/Sweepers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent 8684D Signal Gen/Synthesizers/Sweepers is a versatile and high-performance instrument used in electronic testing and measurement. It is a crucial tool in various fields such as research, manufacturing, and troubleshooting. Combining the functions of a signal generator, synthesizer, and sweeper, it offers a wide frequency range, precise frequency and amplitude control, and excellent signal purity for accurate and reliable measurements. Its user-friendly interface allows for easy programming and operation. Professionals in the electronics industry trust the Agilent 8684D for tasks like generating complex waveforms, sweeping frequencies, and synthesizing signals with high stability.
Specifications
– Frequency range: 0.1 Hz to 2.4 GHz
– Output power: -136 dBm to +13 dBm
– Frequency resolution: 0.1 Hz
– Frequency accuracy: ± (1 × 10^-6 + aging rate)
– Amplitude accuracy: ± 1.2 dB
– Phase noise: -120 dBc/Hz at 1 GHz, 10 kHz offset
– Sweep modes: Step, List, Ramp, CW, Pulse, and Linear FM
– Modulation capabilities: AM, FM, and Phase Modulation
– External modulation inputs: AM, FM, and Phase Modulation
– GPIB and RS-232 interface for remote control and programming
– 10 MHz external reference input
– Built-in frequency counter
– 1000 memory registers for storing instrument setups
– Compact and portable design
Agilent 8684D also available with the following specs and models:
- Signal Generator – Microwave – 5.4-18GHz
