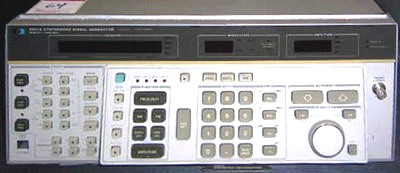

Agilent 8662A Rf Source
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent 8662A RF Source is a highly precise and stable signal generator designed for applications requiring accurate and low-noise RF signals. Covering a frequency range from 10 kHz to 1280 MHz, it is ideal for a variety of tasks in telecommunications, aerospace, and defense industries. The 8662A is known for its exceptional frequency stability, low phase noise, and wide modulation capabilities, including AM, FM, and pulse modulation. This performance makes it particularly suited for testing and calibration of high-performance receivers and components. Its user-friendly interface, combined with programmable features, allows for easy operation and integration into automated test systems. The Agilent 8662A’s robust construction and reliable performance ensure it remains a trusted tool for engineers and technicians requiring precise RF signal generation.
Specifications
- Frequency Range: 10 kHz to 1280 MHz
- Frequency Stability: ±1 x 10^-9/day
- Frequency Resolution: 0.01 Hz
- Phase Noise: -135 dBc/Hz at 20 kHz offset (1 GHz)
- Output Power Range: -139 dBm to +19 dBm
- Power Level Resolution: 0.1 dB
- Modulation Capabilities: AM, FM, Pulse
- AM Modulation: 0 to 99% depth, 0.01% resolution
- FM Modulation: 0 to 10 MHz deviation, 0.1 Hz resolution
- Pulse Modulation: On/Off ratio >80 dB
- Spectral Purity: Harmonics < -60 dBc, Non-harmonics < -80 dBc
- Impedance: 50 Ohms
- Connectors: Type N for RF output, BNC for modulation inputs
- Remote Interface: GPIB (IEEE-488)
- Dimensions: 177 mm (7 in) H x 425 mm (16.75 in) W x 600 mm (23.6 in) D
- Weight: Approximately 30 kg (66 lbs)
- Operating Temperature Range: 0°C to 55°C (32°F to 131°F)
- Power Requirements: 100/120/220/240 VAC, 48-66 Hz, 500 VA max
Agilent Technologies 8662A also available with the following specs and models:
- Synthesized Signal Generator – 0.01-1280MHz
