Agilent 86106A Optical Reference Receiver
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description

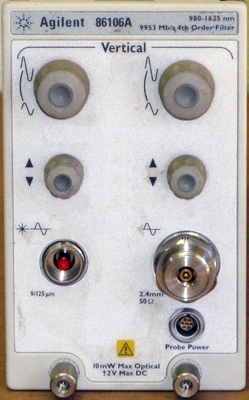

The Agilent 86106A is a 980-1625 nm (9/125 m) Plug-in module for 86100 Infiniium DCA Module incorporates a 10 Gb/s optical reference receiver and a 40 GHz electrical channel. The electrical channel also has a reduced bandwidth setting of 18 GHz for improved noise performance. It includes a reference receiver path for 10 Gb/s transmitter test that has been designed to meet 0C-192/STM-64 standards. It utilizes a switchable reference filter for transceiver compliance testing at OC-192/STM-64 (4th or 5th order filtering). Option 101,OC-192/STM-64 (9952 Gb/s) Fourth Order. Option 102, OC-192/STM-64 (9952 Gb/s) Fifth Order.
Specifications:
– Wavelength range: 600 nm to 1700 nm
– Maximum input power: +10 dBm
– Optical input connector: FC/PC
– Electrical output connector: SMA
– Sensitivity: -20 dBm at 1550 nm
– Bandwidth: 50 GHz
– Optical return loss: >40 dB
– Electrical output impedance: 50 ohms
– Power requirements: 100-240 VAC, 50/60 Hz, 100 VA
– Dimensions: 9.5″ x 16.2″ x 17.7″ (H x W x D)
– Weight: 32.4 lbs
Agilent 86106A also available with the following specs and models:
- 10Gb/s Optical / 40GHz Electrical Module
