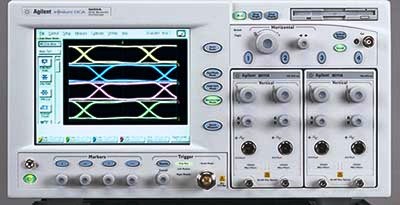

Agilent 86100A Infiniium Dca Wide-Bandwidth Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Infiniium DCA with broad bandwidth, also known as the Agilent Technologies 86100A Oscilloscope Mainframe, is a powerful and versatile device used for signal analysis and measurement in a variety of sectors. With its broad variety of features, especially in terms of bandwidth, this oscilloscope mainframe enables users to precisely evaluate high-speed digital data. The 86100A can collect and display signals at frequencies up to a lot of of gigahertz due to its wide bandwidth capabilities, making it suited for use in the semiconductor, data transmission, and telecommunications sectors. The user-friendly interface and strong software capabilities of the Infiniium DCA make it possible to accurately and quickly analyze complicated waveforms, eye diagrams, and jitter data.
Specifications:
– Bandwidth: Up to 50 GHz
– Sample rate: Up to 160 GSa/s
– Input channels: Up to 4
– Vertical resolution: Up to 10 bits
– Maximum record length: Up to 2 Gpts
– Time base range: Up to 200 ps/div
– Input impedance: 50 Ohms
– Input coupling: AC, DC, or GND
– Trigger types: Edge, pattern, state, setup/hold, or serial pattern
– Display: Color TFT LCD display with touch screen interface
– Connectivity options: USB, LAN, GPIB, and AUX I/O ports
– Supported measurement applications: Eye diagram analysis, jitter analysis, TDR/TDT analysis, and more.
Agilent 86100A also available with the following specs and models:
- Oscilloscope Mainframe – Infiniium – DCA – Wide Bandwidth
