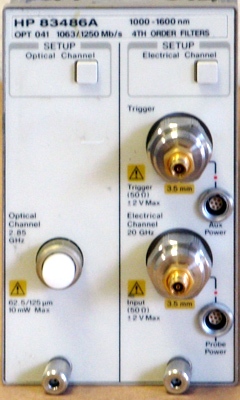

Agilent 83486A Optical/Electrical Plug-In
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent Technologies 83486A Optical/Electrical Plug In-Module is a highly advanced and versatile device utilized for examining optical and electrical signals. It possesses an optical signal frequency range of 3GHz and an impressive 20GHz for electrical signals, delivering exceptional precision and performance. With a wide range of features and capabilities, it is well-suited for applications in telecommunications, data communication, and research and development. The module allows for accurate measurements and analysis of both optical and electrical signals, enabling users to effortlessly troubleshoot, validate, and optimize their systems. Its compact design and user-friendly interface make it convenient for use in both laboratory and field environments. In summary, the Agilent Technologies 83486A Optical/Electrical Plug In-Module is a cutting-edge instrument that equips professionals with the necessary tools for efficient analysis and characterization of optical and electrical signals.
Specifications:
– Frequency range: Optical: 3 GHz, Electrical: 20 GHz
– Optical input: -20 dBm to +5 dBm
– Optical wavelength range: 1250 nm to 1650 nm
– Optical bandwidth: 14 GHz
– Electrical input impedance: 50 ohms
– Electrical sensitivity: 1 mV/div to 500 mV/div
– Electrical bandwidth: DC to 20 GHz
– Optical return loss: > 35 dB
– Electrical return loss: > 10 dB
– Optical power accuracy: ± 0.5 dB
– Electrical power accuracy: ± 0.25 dB
– Optical power measurement range: -40 dBm to +23 dBm
– Electrical power measurement range: -30 dBm to +20 dBm
– Optical connector type: FC/PC
– Electrical connector type: 2.92 mm (K)
Dimensions:
– 2.75 in x 8.5 in x 16.75 in
– Weight: 6.8 lbs
