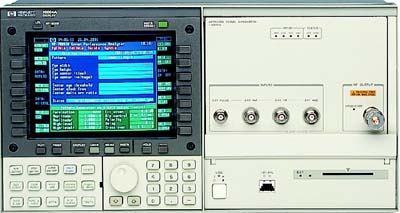

Agilent 71612B Performance Analyzer System
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent Technologies 71612B Error Performance Analyzer is a cutting-edge testing instrument designed specifically for high-speed data communication applications. It has a maximum data rate of 12 Gb/s, ensuring accurate and dependable error performance measurements. It comes with advanced features like adjustable error insertion and built-in clock recovery, enabling users to mimic real-world scenarios and evaluate the efficiency of their devices or systems. The 71612B provides a comprehensive range of analysis capabilities, including error counting, error rate measurements, and eye diagram analysis. This allows engineers to easily troubleshoot and optimize their designs. Ultimately, the Agilent Technologies 71612B Error Performance Analyzer is an indispensable tool for guaranteeing the quality and effectiveness of high-speed data communication networks.
Specifications
– Model: Agilent Technologies 71612B
– Error Performance Analyzer
– Data rate: 12 Gb/s
– Input channels: 1
– Input impedance: 50 Ω
– Input voltage range: ± 4.5 V
– Input sensitivity: 7 mVpp
– Input frequency range: DC to 12.5 GHz
– Clock frequency range: 100 MHz to 12.5 GHz
– Pattern length: 2^7 – 1 (127)
– Max bit error rate (BER): 10^-12
– Jitter measurement range: 100 fs to 1000 ps
– Jitter measurement accuracy: ± 2% of reading + 20 fs
– Power supply: 100-240 VAC, 50/60 Hz
– Dimensions: 426 mm x 132 mm x 464 mm
– Weight: 9.5 kg
Agilent 71612B also available with the following specs and models:
- Error Performance Analyzer – 12 Gb/s
